4184N Series

Catalog

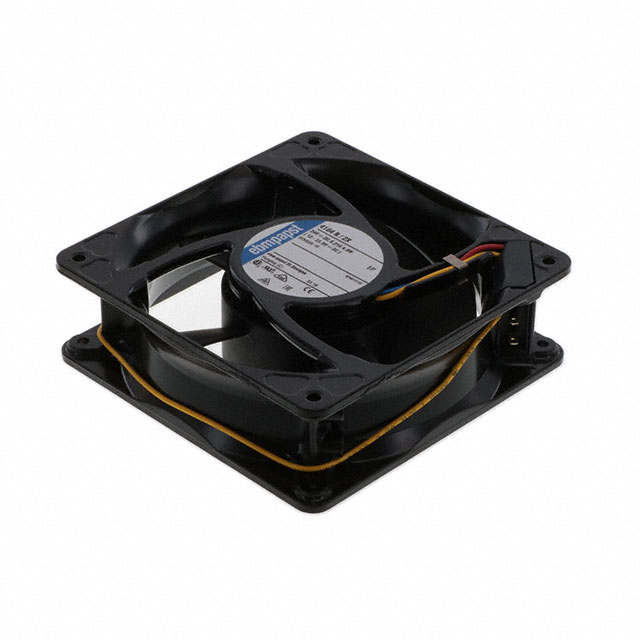

FAN AXIAL 119X38MM 24VDC TERM

Part	Material - Frame	Lifetime @ Temp.	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Power (Watts)	Weight	Weight	Termination	RPM	Approval Agency	Width [y]	Air Flow	Air Flow	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Fan Type	Noise	Features	Termination	Lifetime @ Temp.	Current Rating (Amps)

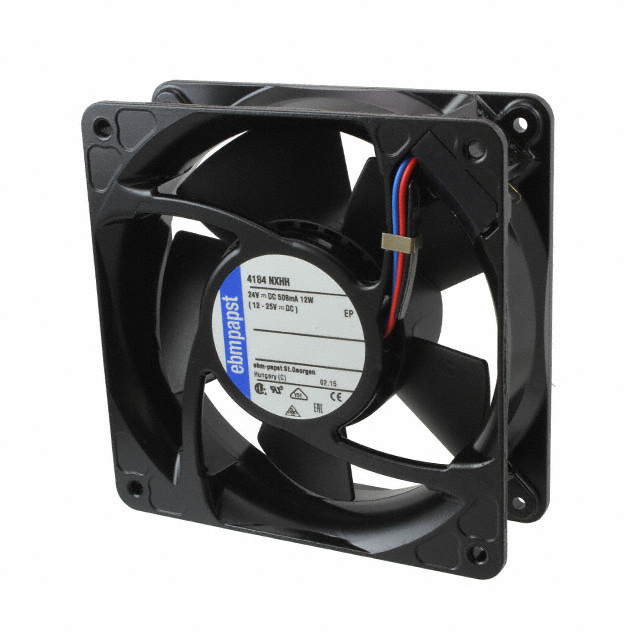

ebm-papst Inc. 4184NXHH	Aluminum	70000 Hrs	Polyamide (PA) Nylon Fiberglass Reinforced	28 V	12 VDC	70 °C	-30 ░C	-30 °C	70 °C	Ball	12.2 W	0.86 lb	390.09 g	2	4400 RPM	CE CSA UL VDE	38 mm	4.12 m³/min	147.1 CFM	Square	119 mm	119 mm	24 VDC	Tubeaxial	60 dB(A)
ebm-papst Inc. 4184N/2X-268	Aluminum		Polyamide (PA) Nylon Fiberglass Reinforced	31.5 VDC	12 VDC					Ball	4.9 W	0.86 lb	390.09 g		3200 RPM		38 mm	2.97 m³/min	106 CFM	Square	119 mm	119 mm	24 VDC	Tubeaxial	49 dB	Speed Sensor (Tach)
ebm-papst Inc. 4184N/2XR	Aluminum		Polyamide (PA) Nylon Fiberglass Reinforced	31.5 VDC	12 VDC	70 °C	-30 ░C	-30 °C	70 °C	Ball	4.9 W	0.86 lb	390.09 g		3200 RPM		38 mm	2.97 m³/min	106 CFM	Square	119 mm	119 mm	24 VDC	Tubeaxial	49 dB	Speed Sensor (Tach)	3 Wire Leads
ebm-papst Inc. 4184N/2X	Aluminum	85000 Hrs	Polyamide (PA) Nylon Fiberglass Reinforced	31.5 VDC	12 VDC	70 °C	-30 ░C	-30 °C	70 °C	Ball	4.9 W	0.86 lb	390.09 g		3200 RPM		38 mm	2.97 m³/min	106 CFM	Square	119 mm	119 mm	24 VDC	Tubeaxial	49 dB	Speed Sensor (Tach)	3 Wire Leads
ebm-papst Inc. 4184N/17X	Aluminum		Polyamide (PA) Nylon Fiberglass Reinforced	32 V	18 VDC	70 °C	-30 ░C	-30 °C	70 °C	Ball	4.9 W				3200 RPM	CE CSA EAC UL VDE	38 mm	2.97 m³/min	106 CFM	Square	119 mm	119 mm	24 VDC	Tubeaxial	49 dB		3 Wire Leads	Varies Based on Temperature	0.245 A
ebm-papst Inc. 4184NXHU	Aluminum		Polyamide (PA) Nylon Fiberglass Reinforced	28 V	12 VDC					Ball	11 W	0.86 lb	390.09 g		4400 RPM		38 mm	3.92 mł/min	140 CFM	Square	119 mm	119 mm	24 VDC	Tubeaxial	57 dB		2 Wire Leads
