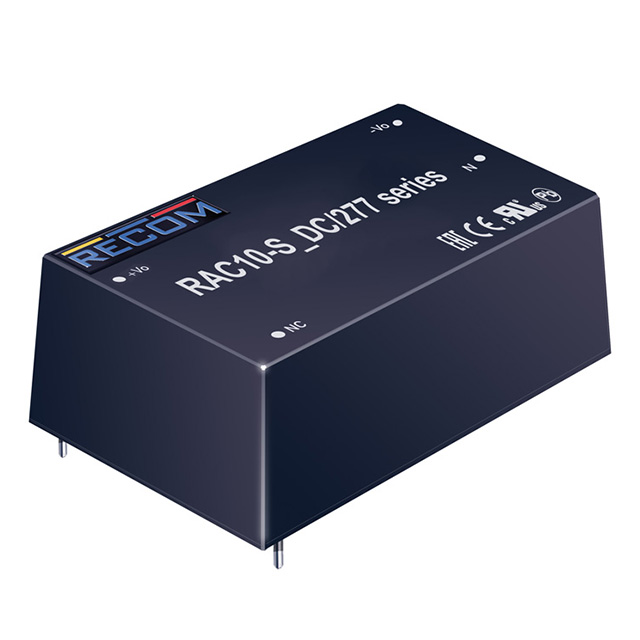

RAC10-S_DC/277 Series

Catalog

AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 10 W, 5 V, 2 A

Part	Power (Watts)	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Features	Standard Number	Package / Case	Approval Agency	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Current - Output (Max) [Max]	Current - Output (Max)	Weight	Weight	Load Regulation	Line Regulation	Load Regulation
Recom Power RAC10-05SC/277	10 W	78 %	70 °C	-20 °C	Enclosed	Through Hole	1	305 VAC	80 VAC	Universal Input	60950-1	4-DIP Module	CE cULus	ITE (Commercial)	52.5 mm	0.93 "	1.08 in	27.4 mm	23.5 mm	2.07 in	5 V	2 A

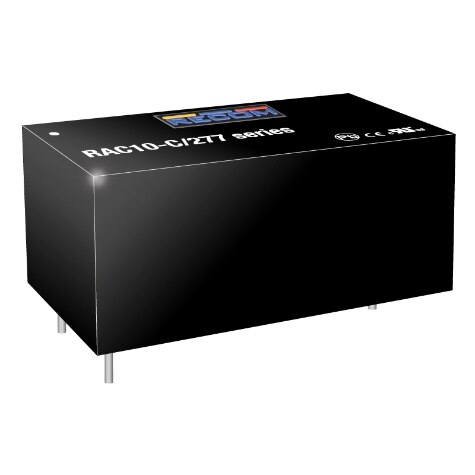

Recom Power RAC10-12DC/277	10 W	79 %	70 °C	-20 °C	Enclosed	Through Hole	2	305 VAC	80 VAC	Universal Input	60950-1	5-DIP Module	CE cULus	ITE (Commercial)	52.5 mm	0.93 "	1.08 in	27.4 mm	23.5 mm	2.07 in	12 V		420 mA
Recom Power RAC10-24SC/277	10 W	80 %	70 °C	-20 °C	Enclosed	Through Hole	1	305 VAC	80 VAC	Universal Input	60950-1	4-DIP Module	CE cULus	ITE (Commercial)	52.5 mm	0.93 "	1.08 in	27.4 mm	23.5 mm	2.07 in	24 V	420 mA		62.14 g	0.137 lb	0.5 %	0.3 %
Recom Power RAC10-12SC/277	10 W	80 %	70 °C	-20 °C	Enclosed	Through Hole	1	305 VAC	80 VAC	Universal Input	60950-1	4-DIP Module	CE cULus	ITE (Commercial)	52.5 mm	0.93 "	1.08 in	27.4 mm	23.5 mm	2.07 in	12 V	840 mA		62.14 g	0.137 lb		0.3 %	±1%
Recom Power RAC10-15SC/277	10 W	78 %	70 °C	-20 °C	Enclosed	Through Hole	1	305 VAC	80 VAC	Universal Input	60950-1	4-DIP Module	CE cULus	ITE (Commercial)	52.5 mm	0.93 "	1.08 in	27.4 mm	23.5 mm	2.07 in	15 V	670 mA		62.14 g	0.137 lb	0.5 %	0.3 %
