IPA600 Series
Manufacturer: INFINEON
Beta
⌘K

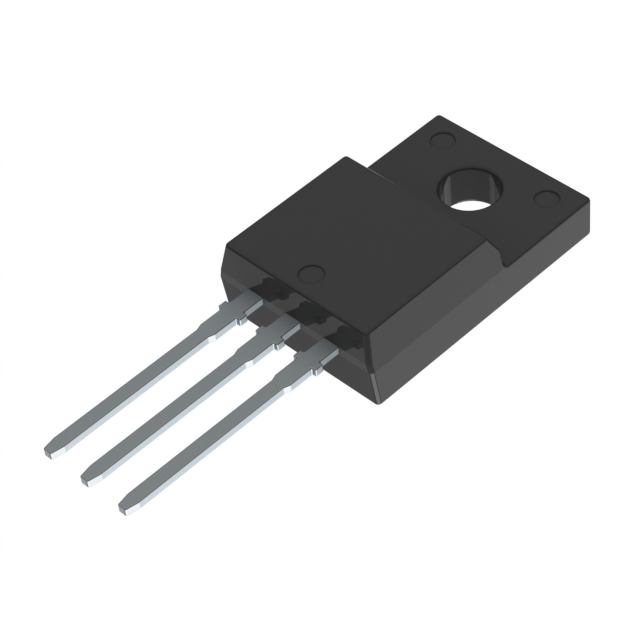

MOSFET, N-CH, 250V, 15A, TO-220FP ROHS COMPLIANT: YES
| Part | Vgs(th) (Max) @ Id [Max] | Drain to Source Voltage (Vdss) | FET Type | Rds On (Max) @ Id, Vgs | Supplier Device Package | Drive Voltage (Max Rds On, Min Rds On) | Package / Case | Gate Charge (Qg) (Max) @ Vgs [Max] | Technology | Current - Continuous Drain (Id) @ 25°C | Operating Temperature [Max] | Operating Temperature [Min] | Input Capacitance (Ciss) (Max) @ Vds [Max] | Vgs (Max) | Power Dissipation (Max) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 4 V | 250 V | N-Channel | 60 mOhm | PG-TO220 Full Pack | 10 V | TO-220-3 Full Pack | 29 nC | MOSFET (Metal Oxide) | 15 A | 175 °C | -55 °C | 2300 pF | 20 V | 38 W | Through Hole |
