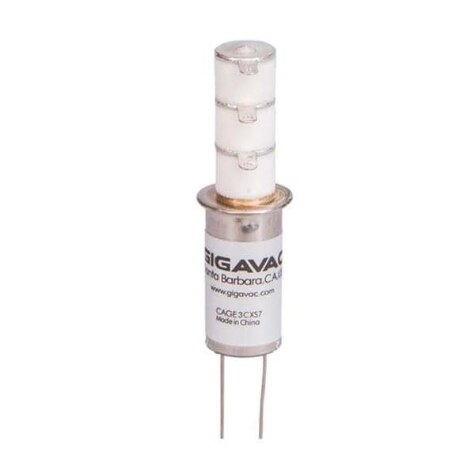

Industrial Relays 10KV SPDT HV RELAY
Industrial Relays 10KV SPDT HV RELAY
| Part | Coil Current | Contact Material | Release Time | Operate Time | Coil Resistance | Coil Power | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Coil Voltage | Must Release Voltage | Must Operate Voltage | Contact Form | Termination Style | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata - Gigavac Industrial | 24.5 mA | Tungsten (W) | 10 ms | 10 ms | 4700 Ohms | 2.8 W | 10000 VDC | 10000 VAC | 115 VAC | 5 VDC | 80 VDC | 1 C Form SPDT | Solder Cup Solder Turret | 125 °C | -55 °C | Chassis Mount | 25 A |
Sensata - Gigavac Industrial | 171.4 mA | Tungsten (W) | 10 ms | 10 ms | 70 Ohms | 2.1 W | 10000 VDC | 10000 VAC | 12 VAC | 0.5 VDC | 8 VDC | 1 C Form SPDT | Solder Cup Solder Turret | 125 °C | -55 °C | Chassis Mount | 25 A |
