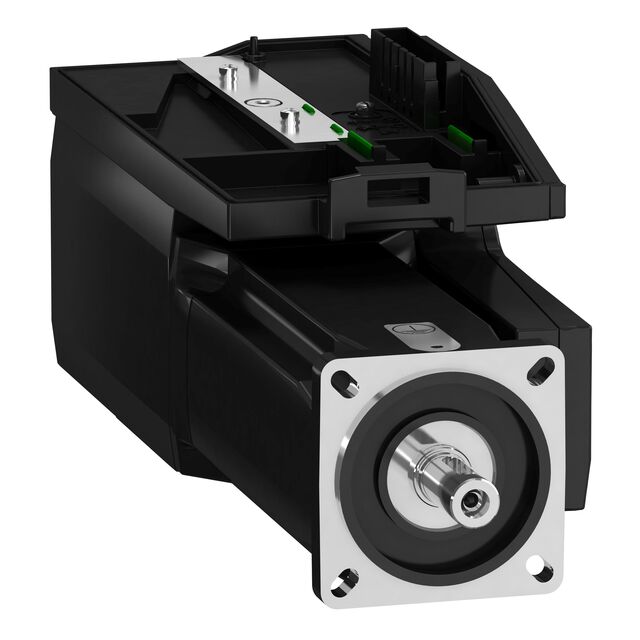

Lexium 32i Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K
MOT 1P 100MM IP65 1,3KW KEY ENC
| Part | Voltage - Rated [Max] | Voltage - Rated [Min] | Power - Rated | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Function | Termination Style | Features | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | RPM | Encoder Type | Length - Shaft and Bearing | Length - Shaft and Bearing | Usage | Accessory Type | Length - Shaft and Bearing [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 230 VAC | 115 VAC | 1300 W | AC Motor | 3.937 " | 3.937 " | 100 mm | 100 mm | 95 mm | 3.74 in | 764.7 oz-in | 5400 mNm | Servomotor | Connector | Brake Key | 0.75 in | 19.05 mm | 6000 RPM | Absolute | 1.57 in | 39.88 mm | |||
 SCHNEIDER ELECTRIC | 480 VAC | 208 VAC | 900 W | AC Motor | 2.76 " | 2.76 " | 70.1 mm | 70.1 mm | 59.94 mm | 2.36 in | 339.8 oz-in | 2400 mNm | Servomotor | Connector | Brake Key | 0.43 in | 10.92 mm | 8000 RPM | Absolute | 0.91 in | 23.11 mm | |||
SCHNEIDER ELECTRIC | 480 VAC | 208 VAC | 2.1 kW | AC Motor | 3.937 " | 3.937 " | 100 mm | 100 mm | 95 mm | 3.74 in | 1020 oz-in | 7200 mNm | Servomotor | Connector | Brake Key | 0.75 in | 19.05 mm | 6000 RPM | Absolute | 1.57 in | 39.88 mm | |||
SCHNEIDER ELECTRIC | 480 VAC | 208 VAC | 900 W | AC Motor | 2.76 " | 2.76 " | 70.1 mm | 70.1 mm | 59.94 mm | 2.36 in | 339.8 oz-in | 2400 mNm | Servomotor | Connector | Brake | 0.43 in | 10.92 mm | 8000 RPM | Absolute | 0.91 in | 23.11 mm | |||
SCHNEIDER ELECTRIC | 480 VAC | 208 VAC | 1.9 kW | AC Motor | 3.937 " | 3.937 " | 100 mm | 100 mm | 95 mm | 3.74 in | 764.7 oz-in | 5400 mNm | Servomotor | Connector | 0.75 in | 19.05 mm | 6000 RPM | Absolute | 1.57 in | 39.88 mm | ||||
 SCHNEIDER ELECTRIC | Motor Driver | Control Unit | ||||||||||||||||||||||
 SCHNEIDER ELECTRIC | 480 VAC | 208 VAC | 900 W | AC Motor | 2.76 " | 2.76 " | 70.1 mm | 70.1 mm | 59.94 mm | 2.36 in | 339.8 oz-in | 2400 mNm | Servomotor | Connector | Key | 0.43 in | 10.92 mm | 8000 RPM | Absolute | 0.91 in | 23.11 mm | |||
 SCHNEIDER ELECTRIC | 230 VAC | 115 VAC | 700 W | AC Motor | 2.76 " | 2.76 " | 70.1 mm | 70.1 mm | 59.94 mm | 2.36 in | 410.7 oz-in | 2900 mNm | Servomotor | Connector | Key | 0.55 in | 13.97 mm | 8000 RPM | Absolute | 29.97 mm | 1.18 in |
