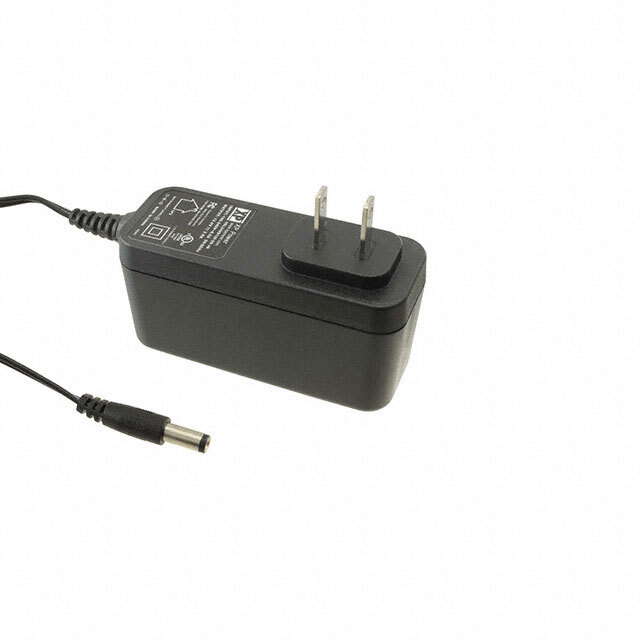

VEL24 Series

Manufacturer: XP Power

Catalog

WALL MOUNT AC ADAPTERS FIXED PLUG ADAPTER, 24W, OUTPUT JACK, LEVEL VI

Part	Region Utilized	Current - Output (Max) [Max]	Voltage - Output	Operating Temperature [Max]	Cord Length	Cord Length	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]	Size / Dimension	Size / Dimension	Power (Watts)	No Load Power Consumption	Input Connector	Approval Agency	Efficiency	Form	Voltage - Input [Max]	Voltage - Input [Min]	Polarization	Input Type	Applications	Standard Number	Weight	Weight	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]
XP Power VEL24US240-EU-JA	Europe	1 A	24 V	50 °C	1.5 m	59 in	2.1 mm	5.5 mm	Barrel Plug	12 mm	34 mm 57.6 mm 90 mm	1.34 " 2.26 " 3.54 "	24 W	100 mW	CEE 7/16	CB TUV UL	CoC Tier 2 Level VI	Wall Mount	264 VAC	90 VAC	Positive Center	Fixed Blade	ITE (Commercial)	62368-1
XP Power VEL24US120-US-JA	North America	2 A	12 V	50 °C	1.5 m	59 in	2.1 mm	5.5 mm	Barrel Plug	12 mm			24 W	100 mW	NEMA 1-15P	CB TUV UL	CoC Tier 2 Level VI	Wall Mount	264 VAC	90 VAC	Positive Center	Fixed Blade	ITE (Commercial)	62368-1	85.28 g	0.188 lb	34 mm	1.34 in	1.87 in	47.5 mm	3.54 in	90 mm
XP Power VEL24US240-UK-JA	United Kingdom	1 A	24 V	50 °C	1.5 m	59 in	2.1 mm	5.5 mm	Barrel Plug	12 mm			24 W	100 mW	BS 1363	CB TUV UL	CoC Tier 2 Level VI	Wall Mount	264 VAC	90 VAC	Positive Center	Fixed Blade	ITE (Commercial)	62368-1			49.5 mm	1.95 in	1.97 "	50 mm	3.54 in	90 mm
