392-106 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 106POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Positions/Bay/Row	Number of Positions	Read Out	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Contact Finish	Gender	Color	Contact Type	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Rows [custom]	Features	Contact Finish Thickness	Contact Finish Thickness	Card Type
EDAC Inc. 392-106-555-204	2	Polyester Thermoplastic	53	106	Dual	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Gold	Female	Black	Cantilever	Solder Eyelet(s)	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	-40 C	105 ░C	Copper Alloy	2	Card Extender	0.25 Ám	10 Áin	Non Specified - Dual Edge
EDAC Inc. 392-106-558-202	2	Polyester Thermoplastic	53	106	Dual	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Gold	Female	Black	Cantilever	Solder Wire Wrap	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	-40 C	105 ░C	Copper Alloy	2		0.25 Ám	10 Áin	Non Specified - Dual Edge
EDAC Inc. 392-106-555-203	2	Polyester Thermoplastic	53	106	Dual	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Gold	Female	Black	Cantilever	Solder Eyelet(s)	Floating Bobbin Flush Mount	0.116 "	2.95 mm	-40 C	105 ░C	Copper Alloy	2	Card Extender	0.25 Ám	10 Áin	Non Specified - Dual Edge
EDAC Inc. 392-106-542-212	2	Polyester Thermoplastic	53	106	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Gold	Female	Black	Cantilever	Wire Wrap	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	-40 C	105 ░C	Copper Alloy	2		0.25 Ám	10 Áin	Non Specified - Dual Edge
EDAC Inc. 392-106-560-202	2	Polyester Thermoplastic	53	106	Dual	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Gold	Female	Black	Cantilever	Solder	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	-40 C	105 ░C	Copper Alloy	2	Card Extender	0.25 Ám	10 Áin	Non Specified - Dual Edge
EDAC Inc. 392-106-523-201	2	Polyester Thermoplastic	53	106	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Gold	Female	Black	Cantilever	Solder				-40 C	105 ░C	Copper Alloy	2		0.25 Ám	10 Áin	Non Specified - Dual Edge
EDAC Inc. 392-106-555-207	2	Polyester Thermoplastic	53	106	Dual	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Gold	Female	Black	Cantilever	Solder Eyelet(s)	Flush Mount M3 Threaded Insert Top Opening			-40 C	105 ░C	Copper Alloy	2	Card Extender	0.25 Ám	10 Áin	Non Specified - Dual Edge
EDAC Inc. 392-106-544-208	2	Polyester Thermoplastic	53	106	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Gold	Female	Black	Cantilever	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening			-40 C	105 ░C	Copper Alloy	2		0.25 Ám	10 Áin	Non Specified - Dual Edge

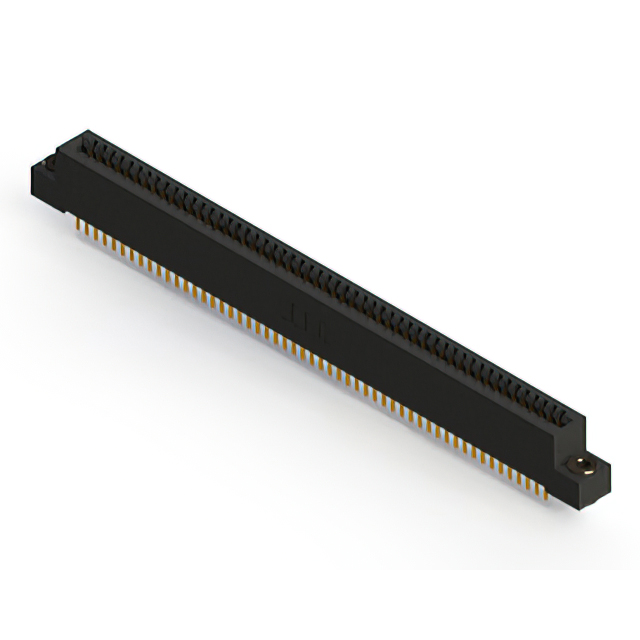

EDAC Inc. 392-106-521-203	2	Polyester Thermoplastic	53	106	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Gold	Female	Black	Cantilever	Solder	Floating Bobbin Flush Mount	0.116 "	2.95 mm	-40 C	105 ░C	Copper Alloy	2		0.25 Ám	10 Áin	Non Specified - Dual Edge
EDAC Inc. 392-106-541-207	2	Polyester Thermoplastic	53	106	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Gold	Female	Black	Cantilever	Wire Wrap	Flush Mount M3 Threaded Insert Top Opening			-40 C	105 ░C	Copper Alloy	2		0.25 Ám	10 Áin	Non Specified - Dual Edge
