2004-7511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

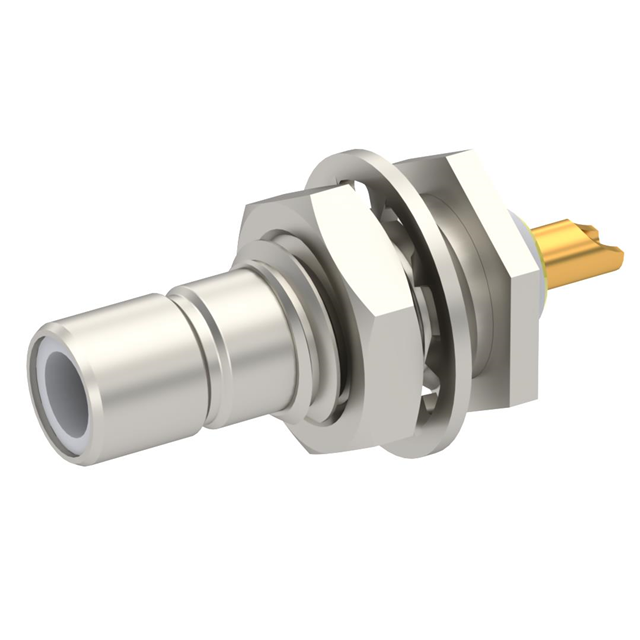

SMB M STR BHD SP
| Part | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Finish | Mating Cycles | Body Material | Dielectric Material | Mounting Type | Center Contact Material | Connector Type | Number of Ports | Shield Termination | Frequency - Max [Max] | Contact Termination | Connector Style | Fastening Type | Housing Color | Impedance | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 1 Connector 1 Lockwasher 1 Nut | -65 ░C | 165 °C | Gold | Nickel | 500 | Brass | Polytetrafluoroethylene (PTFE) | Panel Mount | Beryllium Copper | Jack Male Pin | 1 | Solder | 4 GHz | Solder Cup | SMB | Snap-On | Silver | 50 Ohms | Bulkhead - Front Side Nut |
