PP3-002 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

CONN PWR PLUG 1.35X3.5MM SOLDER

Part	Operating Temperature [Max]	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Shielding	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Insulation Color	Mating Length/Depth	Mating Length/Depth	Gender	Current Rating (Amps)	Voltage - Rated	Mounting Type	Connector Type	Termination	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]	Includes	Body Color	Body Material	Contact Material - Plating	Contact Material	Housing Material	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]

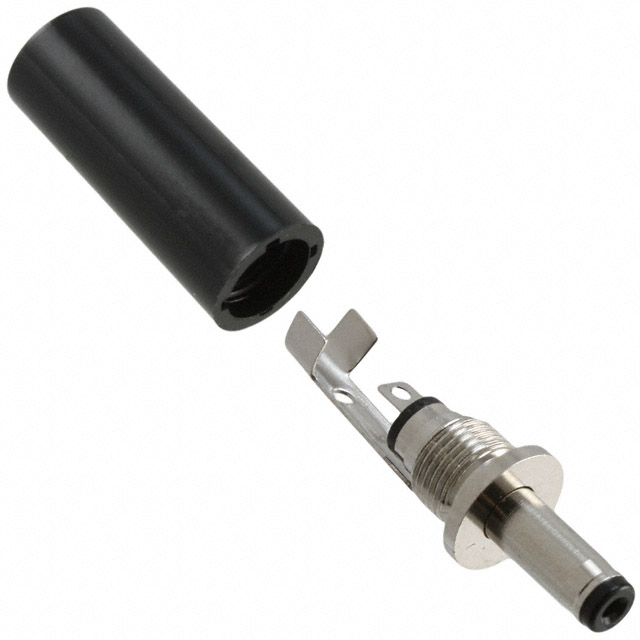

Same Sky (Formerly CUI Devices) PP3-002D	40 °C	0.053 in 0.138 in	1.35 mm 3.5 mm	Unshielded	2	2	Black	0.354 in	9 mm	Female	5 A	24 VDC	Free Hanging (In-Line)	Plug	Solder	3.5 mm	1.35 mm	0.138 in	0.053 in
Same Sky (Formerly CUI Devices) PP3-002A	40 °C	0.083 " 0.217 in	2.1 mm 5.5 mm	Unshielded	2	2	Black	0.374 in	9.5 mm	Female	6 A	20 V	Free Hanging (In-Line)	Plug	Solder					0.083 in 0.217 in	2.1 mm 5.5 mm
Same Sky (Formerly CUI Devices) PP3-002D	40 °C	0.053 in 0.138 in	1.35 mm 3.5 mm	Unshielded	2	2	Black	0.354 in	9 mm	Female	5 A	24 VDC	Free Hanging (In-Line)	Plug	Solder	3.5 mm	1.35 mm	0.138 in	0.053 in			1 Connector 1 Handle	Black Silver	Brass	Nickel	Brass	Thermoplastic
Same Sky (Formerly CUI Devices) PP3-002B	40 °C			Unshielded	2	2	Black	0.374 in	9.5 mm	Female	7 A	24 VDC	Free Hanging (In-Line)	Plug	Solder					0.098 in 0.217 in	2.5 mm 5.5 mm	1 Connector 1 Handle	Black Silver	Brass	Nickel	Brass	Thermoplastic	0.217 in	2.5 mm	5.5 mm	0.098 in
Same Sky (Formerly CUI Devices) PP3-002A	40 °C	0.083 " 0.217 in	2.1 mm 5.5 mm	Unshielded	2	2	Black	0.374 in	9.5 mm	Female	6 A	20 V	Free Hanging (In-Line)	Plug	Solder					0.083 in 0.217 in	2.1 mm 5.5 mm	1 Connector 1 Handle	Black Silver	Brass	Nickel	Brass	Polyoxymethylene (POM)
