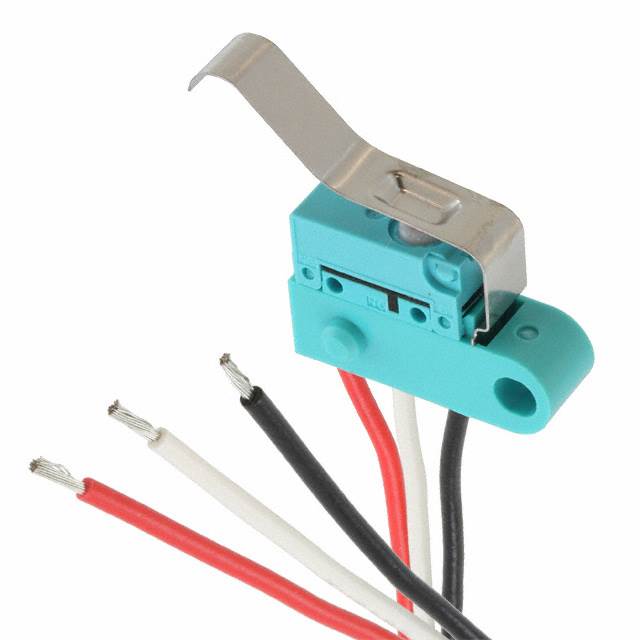

ABJ361 Series

Catalog

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Pretravel	Pretravel	Ingress Protection	Mechanical Life	Voltage Rating - DC	Release Force	Mounting Type	Electrical Life	Overtravel [custom]	Overtravel [custom]	Switch Function	Voltage Rating - AC	Differential Travel	Differential Travel	Termination Style	Actuator Type	Operating Position	Operating Position	Circuit	Operating Force	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]
Panasonic Electronic Components ABJ361861	0.236 "	6 mm	IP67 - Dust Tight Waterproof	500000 Cycles	30 V	30 gf	Chassis Mount	100000 Cycles	2.5 mm	0.098 "	On-Mom	125 V	1 mm	0.04 in	Wire Leads	Leaf Lever	16 mm	0.63 in	SPDT	130 gf	100 mA	85 °C	-40 C
Panasonic Electronic Components ABJ361841	0.236 "	6 mm	IP67 - Dust Tight Waterproof	500000 Cycles	30 V	20 gf	Chassis Mount	100000 Cycles	2.5 mm	0.098 "	On-Mom	125 V	1 mm	0.04 in	Wire Leads	Leaf Lever	16 mm	0.63 in	SPDT	100 gf	100 mA	85 °C	-40 C
Panasonic Electronic Components ABJ3618609	0.236 "	6 mm	IP67 - Dust Tight Waterproof	500000 Cycles	30 V	30 gf	Chassis Mount	6000 Cycles	2.5 mm	0.098 "	On-Mom	125 V	1 mm	0.04 in	Wire Leads	Leaf Lever	16 mm	0.63 in	SPDT	130 gf	2 A	85 °C	-40 C
