3604 Series

Catalog

CBL RIBN 100COND 0.025 WHT

Part	Insulation Resistance	Conductor Material	First Conductor Mark	Shielding	Voltage	Number of Conductors	Wire Gauge	Conductor Strand	Jacket Color	Length	Length	Jacket (Insulation) Material	Ribbon Width [custom]	Ribbon Width [custom]	Ratings	Ribbon Thickness	Ribbon Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Pitch	Pitch	Number of Conductors [custom]
3M Electronic Specialty 3604/100 100	10 GOhm	Copper Silver Coated	Blue	Unshielded	150 V	100	30 AWG	Solid	White	100 '	30.48 m	Fluorinated Ethylene-Propylene (FEP)	2.5 in	63.5 mm	UL Style 20726	0.61 mm	0.024 in	-55 C	150 °C	Flat Cable	0.64 mm	0.025 in
3M Electronic Specialty 3604/16	10 GOhm	Copper Silver Coated	Blue	Unshielded	150 V	16	30 AWG	Solid	White			Fluorinated Ethylene-Propylene (FEP)	0.4 in	10.16 mm	UL Style 20726	0.61 mm	0.024 in	-55 C	150 °C	Flat Cable	0.64 mm	0.025 in
3M Electronic Specialty 3604/80	10 GOhm	Copper Silver Coated	Blue	Unshielded	150 V	80	30 AWG	Solid	White	100 '	30.48 m	Fluorinated Ethylene-Propylene (FEP)	2 in	50.8 mm	UL Style 20726	0.61 mm	0.024 in	-55 C	150 °C	Flat Cable	0.64 mm	0.025 in
3M Electronic Specialty 3604/30	10 GOhm	Copper Silver Coated	Blue	Unshielded	150 V	30	30 AWG	Solid	White			Fluorinated Ethylene-Propylene (FEP)	0.75 in	19.05 mm	UL Style 20726	0.61 mm	0.024 in	-55 C	150 °C	Flat Cable	0.64 mm	0.025 in

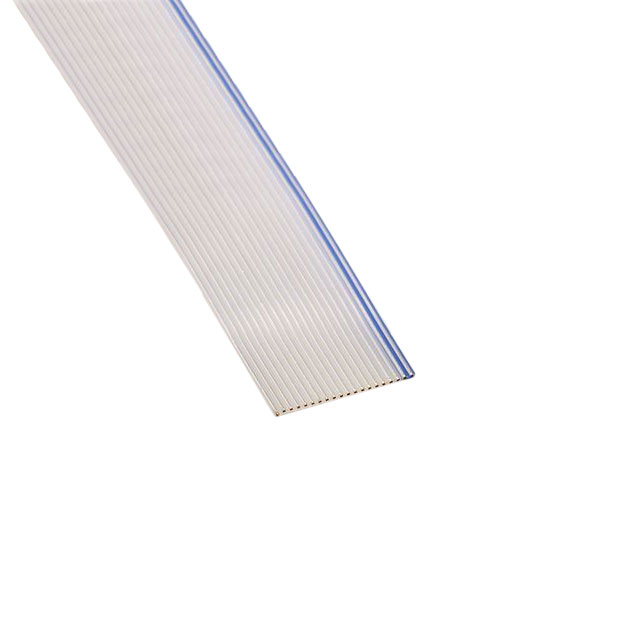

3M Electronic Specialty 3604/50 100	10 GOhm	Copper Silver Coated	Blue	Unshielded	150 V	50	30 AWG	Solid	White	100 '	30.48 m	Fluorinated Ethylene-Propylene (FEP)	1.25 in	31.75 mm	UL Style 20726	0.61 mm	0.024 in	-55 C	150 °C	Flat Cable	0.64 mm	0.025 in
3M Electronic Specialty 3604/10	10 GOhm	Copper Silver Coated	Blue	Unshielded	150 V		30 AWG	Solid	White			Fluorinated Ethylene-Propylene (FEP)	0.25 in	6.35 mm	UL Style 20726	0.61 mm	0.024 in	-55 C	150 °C	Flat Cable	0.64 mm	0.025 in	10
3M Electronic Specialty 3604/36 100	10 GOhm	Copper Silver Coated	Blue	Unshielded	150 V	36	30 AWG	Solid	White	100 '	30.48 m	Fluorinated Ethylene-Propylene (FEP)	0.9 in	22.86 mm	UL Style 20726	0.61 mm	0.024 in	-55 C	150 °C	Flat Cable	0.64 mm	0.025 in
3M Electronic Specialty 3604/08	10 GOhm	Copper Silver Coated	Blue	Unshielded	150 V		30 AWG	Solid	White			Fluorinated Ethylene-Propylene (FEP)	0.2 in	5.08 mm	UL Style 20726	0.61 mm	0.024 in	-55 C	150 °C	Flat Cable	0.64 mm	0.025 in	8
