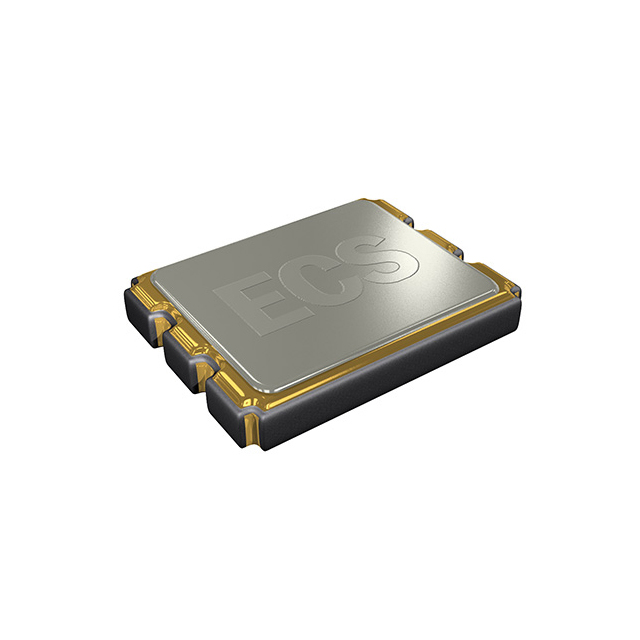

ECS-3225MV Series

Manufacturer: ECS Inc.

Catalog

STANDARD CLOCK OSCILLATORS 12.000 MHZ, MULTI-VOLT, 1.6 - 3.6 V, +/-25PPM, -40 - +85C, 4-SMD, 3.2 X 2.5 MM, ROHS

Part	Frequency Stability	Current - Supply (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Base Resonator [custom]	Mounting Type	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Function	Frequency	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Output	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply (Disable) (Max) [Max]
ECS Inc. ECS-3225MV-120-CN-TR3	25 ppm	4 mA	1.2 mm	0.047 "	Crystal	Surface Mount	3.2	2.5	4-SMD	85 °C	-40 C	Enable/Disable	12 MHz	XO (Standard)	2.5 mm	0.098 in	3.2 mm	0.126 "	HCMOS	4-SMD No Lead	3.3 V	1.8 V
ECS Inc. ECS-3225MV-240-CN-TR3	25 ppm	4 mA	1.2 mm	0.047 "	Crystal	Surface Mount	3.2	2.5	4-SMD	85 °C	-40 C	Enable/Disable	24 MHz	XO (Standard)	2.5 mm	0.098 in	3.2 mm	0.126 "	HCMOS	4-SMD No Lead	3.3 V	1.8 V
ECS Inc. ECS-3225MV-320-CN-TR	25 ppm	4 mA	1.2 mm	0.047 "	Crystal	Surface Mount	3.2	2.5	4-SMD	85 °C	-40 C	Enable/Disable	32 MHz	XO (Standard)	2.5 mm	0.098 in	3.2 mm	0.126 "	HCMOS	4-SMD No Lead	3.63 V	1.62 V	10 µA
ECS Inc. ECS-3225MV-333.3-BN-TR3	50 ppm	4 mA	1.2 mm	0.047 "	Crystal	Surface Mount	3.2	2.5	4-SMD	85 °C	-40 C	Enable/Disable	33.333 MHz	XO (Standard)	2.5 mm	0.098 in	3.2 mm	0.126 "	HCMOS	4-SMD No Lead	3.3 V	1.8 V
