PT15-21 Series

Catalog

PHOTOTRANSISTOR IR CHIP SILICON 940NM 2-PIN SMD T/R

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Dark (Id) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Wavelength	Package / Case	Current - Collector (Ic) (Max) [Max]	Mounting Type	Orientation
Everlight Electronics Co Ltd PT15-21C/TR8	30 V	100 nA	85 °C	-25 °C	75 mW	940 nm	1206 (3216 Metric)	20 mA	Surface Mount	Top View

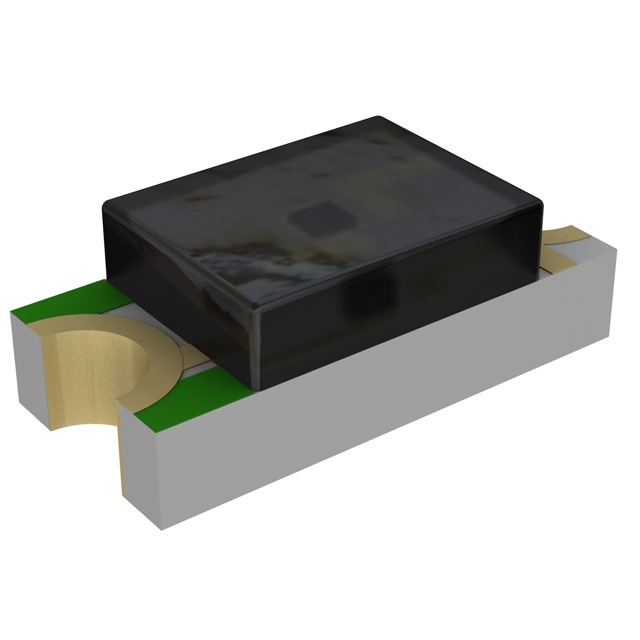

Everlight Electronics Co Ltd PT15-21B/TR8	30 V	100 nA	85 °C	-25 °C	75 mW	940 nm	1206 (3216 Metric)	20 mA	Surface Mount	Top View
