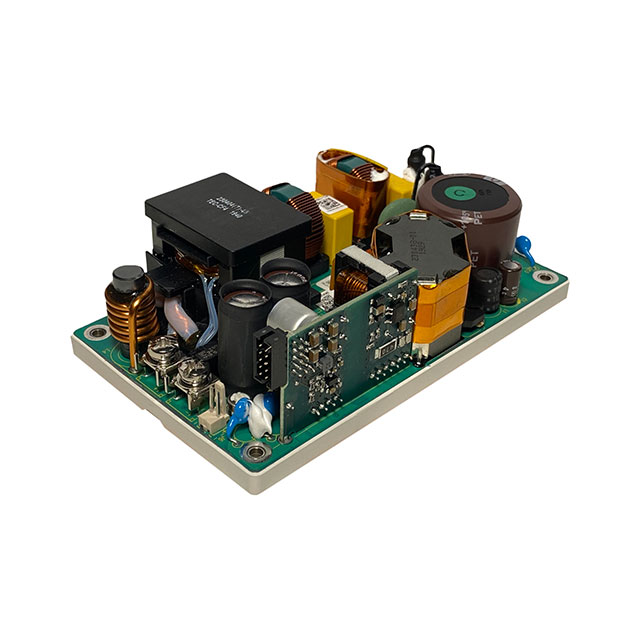

CUS400M Series

Catalog

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUTS, 250 W, 48 V, 5.21 A

Part	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Voltage - Isolation	Current - Output 1	Voltage - Output 1	Standard Number	Number of Outputs	Applications	Approval Agency	Voltage - Output 1 [custom]	Size / Dimension [y]	Size / Dimension [z]
TDK Corporation CUS400M-48/A	250 W	90 mm	142 mm	5.59 in	3.54 in	1.67 in	42.5 mm	Enclosed	70 °C	-20 °C	Adjustable Output PFC Remote Sense Universal Input	Chassis Mount	4000 V	5.21 A	48 V	60601-1; 62368-1	1	ITE (Commercial) Medical	CE
TDK Corporation CUS400M-24/AX5	250 W	90 mm	142 mm	5.59 in	3.54 in	1.67 in	42.5 mm	Enclosed	70 °C	-20 °C	Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input	Chassis Mount	4000 V	10.42 A	24 V	60601-1 60950-1 62368-1	1	ITE (Commercial) Medical	CE
TDK Corporation CUS400M-24/A	250 W	90 mm	142 mm	5.59 in	3.54 in	1.67 in	42.5 mm	Enclosed	70 °C	-20 °C	Adjustable Output Remote Sense Standby Output Universal Input	Chassis Mount	4000 V	10.42 A	24 V	60601-1 60950-1 62368-1	1	ITE (Commercial) Medical	CE
TDK Corporation CUS400M-36/A	250 W	90 mm	142 mm	5.59 in	3.54 in	1.67 in	42.5 mm	Enclosed	70 °C	-20 °C	Adjustable Output PFC Remote Sense Universal Input	Chassis Mount	4000 V	6.94 A		60601-1; 62368-1	1	ITE (Commercial) Medical	CE	36 V
TDK Corporation CUS400M-19/F	250 W		142 mm	5.59 in	3.54 in	2.66 in		Enclosed	70 °C	-20 °C	Adjustable Output PFC Remote Sense Universal Input	Chassis Mount	4000 V		19 V	60601-1; 62368-1	1	ITE (Commercial) Medical	CE		90 mm	67.5 mm
TDK Corporation CUS400M-12/X5	250 W	77.5 mm	128 mm	5.04 "	3.05 in	1.56 "	39.5 mm	Open Frame	70 °C	-20 °C	Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input	Chassis Mount	4000 V	20.83 A	12 V	60601-1 60950-1 62368-1	1	ITE (Commercial) Medical	CE
TDK Corporation CUS400M-19/C	250 W	85.3 mm	141.6 mm	5.57 in	3.36 "	1.61 "	40.8 mm	Open Frame	70 °C	-20 °C	Adjustable Output Baseplate PFC Remote Sense Universal Input	Chassis Mount	4000 V		19 V	60601-1; 62368-1	1	ITE (Commercial) Medical	CE
TDK Corporation CUS400M-12/F	250 W		142 mm	5.59 in	3.54 in	2.66 in		Enclosed	70 °C	-20 °C	Adjustable Output Remote Sense Standby Output Universal Input	Chassis Mount	4000 V	20.83 A	12 V	60601-1 60950-1 62368-1	1	ITE (Commercial) Medical	CE		90 mm	67.5 mm
TDK Corporation CUS400M-19/X5	250 W	77.5 mm	128 mm	5.04 "	3.05 in	1.56 "	39.5 mm	Open Frame	70 °C	-20 °C	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	Chassis Mount	4000 V		19 V	60601-1; 62368-1	1	ITE (Commercial) Medical	CE
TDK Corporation CUS400M-12/A	250 W	90 mm	142 mm	5.59 in	3.54 in	1.67 in	42.5 mm	Enclosed	70 °C	-20 °C	Adjustable Output Remote Sense Standby Output Universal Input	Chassis Mount	4000 V	20.83 A	12 V	60601-1 60950-1 62368-1	1	ITE (Commercial) Medical	CE
