PTR060V Series

Resettable Fuses - PPTC PPTC 60V 0.5A Radial

Manufacturer: Eaton - Electronics Division

Catalog

Resettable Fuses - PPTC PPTC 60V 0.5A Radial

Catalog

Resettable Fuses - PPTC PPTC 60V 0.5A Radial

Part	Approval Agency	Time to Trip	Resistance - Post Trip (R1) (Max) [Max]	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Current - Hold (Ih) (Max)	Voltage - Max [Max]	Lead Spacing	Lead Spacing	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Current - Trip (It)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Resistance - Initial (Ri) (Min) [Min]	Package / Case	Current - Hold (Ih) (Max) [Max]	Height - Seated (Max) [Max] [z]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [custom]	Size / Dimension [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Eaton - Electronics Division PTR060V0250-BK	cURus TUV	15.6 s	130 mOhms	3 mm	0.839 "	21.3 mm	0.118 "	2.5 A	60 V	0.394 in	10 mm	Through Hole	26.4 mm	1.039 in	40 A	5 A	85 °C	-40 C	Polymeric	50 mOhms	Disc Radial
Eaton - Electronics Division PTR060V0300-TR1	cURus TUV	19.8 s	100 mOhms		0.98 "	24.9 mm			60 V	0.394 in	10 mm	Through Hole		1.181 "	40 A	6 A	85 °C	-40 C	Polymeric	40 mOhms	Disc Radial	3 A	30 mm	0.118 in	3 mm

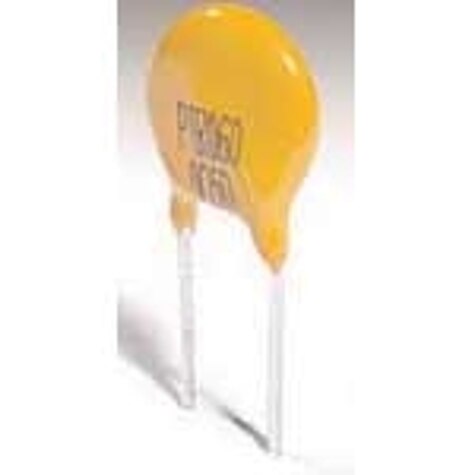

Eaton - Electronics Division PTR060V0050-TR	cURus TUV	4 s	1.17 Ohms		0.299 in	7.6 mm			60 V	0.197 "	5 mm	Through Hole		0.539 in	40 A	1 A	85 °C	-40 C	Polymeric		Disc Radial	500 mA	13.7 mm			0.118 in	3 mm
Eaton - Electronics Division PTR060V0075-BK1		6.3 s	600 mOhms	3.1 mm	0.409 in	10.4 mm	0.122 in		60 V	0.197 "	5 mm	Through Hole			40 A	1.5 A	85 °C	-40 C	Polymeric	250 mOhms	Disc Radial	750 mA						0.598 in	15.2 mm
