80107 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

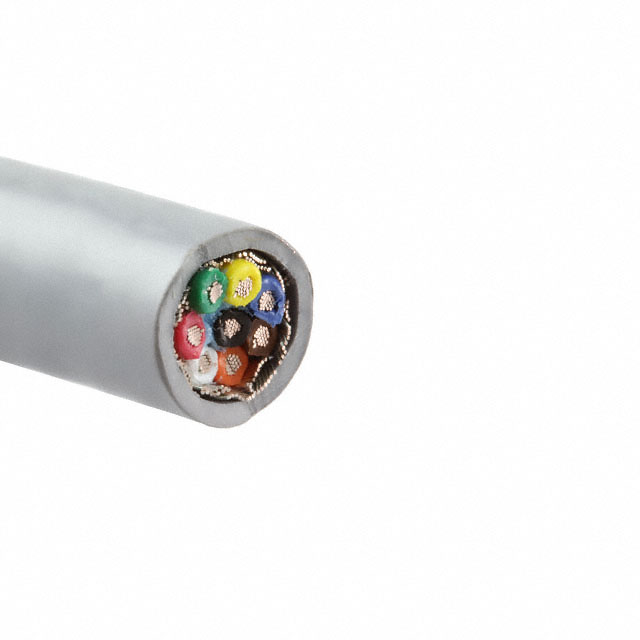

MULTI-CONDUCTOR CABLES 26 AWG 8 CONDUCTOR 600V BRAID, MPPE, ZERO-HALOGEN 100 FT SPOOL SLATE
| Part | Shield Material | Shield Coverage | Conductor Insulation | Shield Type | Wire Gauge | Jacket (Insulation) Material | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Number of Conductors [custom] | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 85 % | Polyphenylene Ether (PPE) | Braid | 26 AWG | Polyurethane (PU) | Slate | 90 °C | -50 °C | 19 | 38 | Copper Tinned | 8 | 100 ft | 30.5 m | 0.0319 in | 0.81 mm | 6.25 mm | 0.246 in | 600 V | Multi-Conductor |
