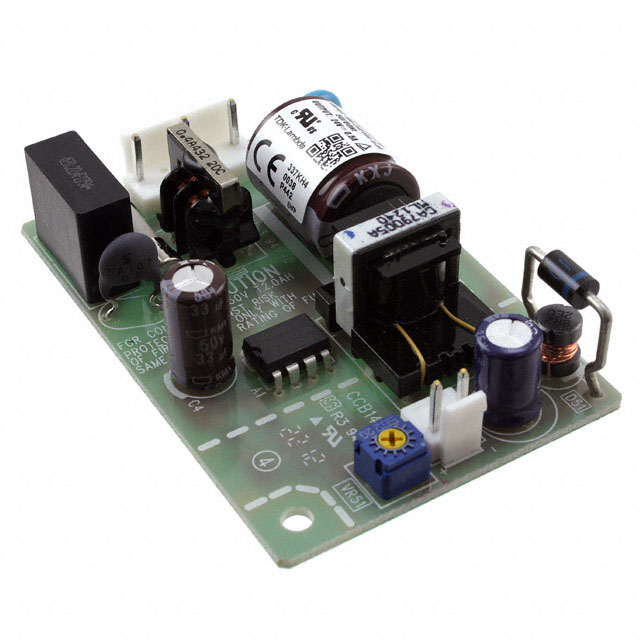

ZWS10-B Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, 12 W, 85V AC TO 265V AC, ADJUSTABLE, FIXED, 24 V
| Part | Features | Type | Voltage - Isolation | Approval Agency | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Mounting Type | Number of Outputs | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Current - Output 1 | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | Open Frame | 3000 V | CE | 24 V | 0.83 " | 50 mm | 1.97 in | 21 mm | 4.14 in | 105.1 mm | Chassis Mount | 1 | 10 W | 70 °C | -10 °C | 265 VAC | 85 VAC | 84 % | 500 mA | ITE (Commercial) |
