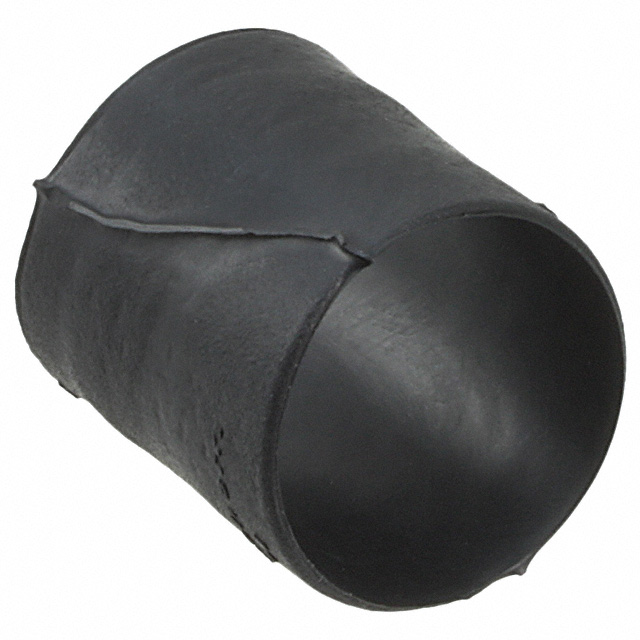

222A111 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

MOLDED PARTS

Part	Color	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Large Recovered Length	Large Recovered Length	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Recovered Length	Small Recovered Length	Type	Total Length Recovered	Total Length Recovered	Shell Size - Insert	Material	Small Recovered Length [custom]	Small Diameter Supplied	Small Diameter Supplied	Features	Small Recovered Length [custom]
TE Connectivity Aerospace, Defense and Marine 222A111-25-G06-0	Black	0.31 in	7.87 mm	0.71 in	18.03 mm	20.07 mm	0.79 in	2.29 mm	0.09 "	18.03 mm	0.71 in	4.32 mm	0.17 in	Boot - 90°	0.67 in	17.02 mm	11	Elastomer Semi-Rigid Irradiated
TE Connectivity Aerospace, Defense and Marine 222A111-25-0	Black	0.311 in	7.9 mm			20.1 mm	0.791 in	3.81 mm	0.15 "			11.4 mm		Boot - 90°			11	Elastomer Semi-Rigid	0.449 in	0.701 "	17.81 mm
TE Connectivity Aerospace, Defense and Marine 222A111-3/86-0	Black	0.311 in	7.9 mm			20.1 mm	0.791 in	3.81 mm	0.15 "			11.4 mm		Boot - 90°			11	Polyolefin (PO) Semi-Rigid	0.449 in	0.701 "	17.81 mm	Adhesive Coating
TE Connectivity Aerospace, Defense and Marine 222A111-100-0	Black	0.31 in	7.87 mm	0.7 in	17.78 mm	20.07 mm	0.79 in	3.81 mm	0.15 "	9.91 mm	0.39 in	11.43 mm		Boot - 90°			11	Polyolefin (PO) Semi-Flexible Halogen Free				Flame Retardant	0.45 in
TE Connectivity Aerospace, Defense and Marine 222A111-3-0	Black	0.311 in	7.9 mm			20.1 mm	0.791 in	3.81 mm	0.15 "			11.4 mm		Boot - 90°			11	Polyolefin (PO) Semi-Rigid	0.449 in	0.701 "	17.81 mm
TE Connectivity Aerospace, Defense and Marine 222A111-3-00-0	Black	0.31 in	7.87 mm	0.7 in	17.78 mm	20.07 mm	0.79 in	9.91 mm	0.39 "	17.78 mm	0.7 in	4.32 mm	0.17 in	Boot - 90°			11	Polyolefin (PO) Semi-Rigid
TE Connectivity Aerospace, Defense and Marine 222A111-25-G07/225-0
