CXS3102A Series

Catalog

CONN RCPT FMALE 24P SOLDER CUP

Part	Contact Material	Primary Material	Voltage Rating	Color	Mounting Feature	Contact Finish - Mating	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Number of Positions	Mounting Type	Shielding	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Connector Type	Applications	Shell Size - Insert	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]
SWITCHCRAFT/CONXALL CXS3102A2428S	Brass	Plastic	500 V	Black	Flange	Silver	Keyed	125 °C	-40 C	Threaded	24	Panel Mount	Unshielded	24	28	Receptacle Female Sockets	Lighting
SWITCHCRAFT/CONXALL CXS3102A2428P	Brass	Plastic	500 V	Black	Flange	Silver	Keyed	125 °C	-40 C	Threaded	24	Panel Mount	Unshielded	24	28	Receptacle Male Pins	Lighting

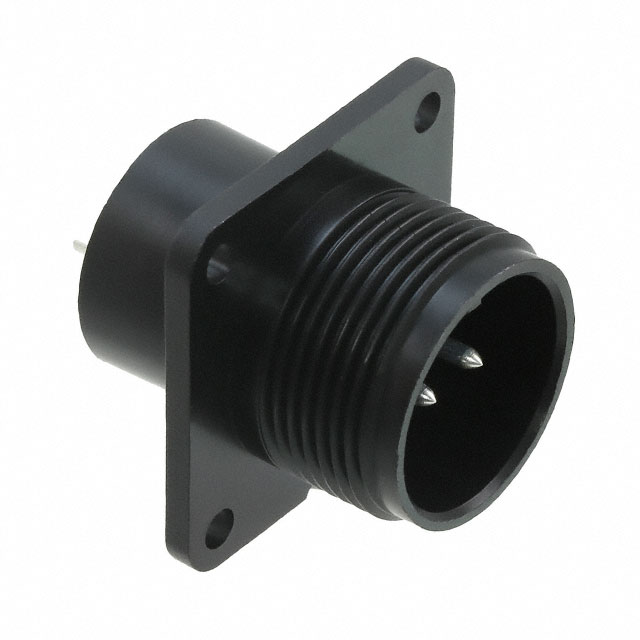

SWITCHCRAFT/CONXALL CXS3102A14S9P	Brass	Plastic	500 V	Black	Flange	Silver	Keyed	125 °C	-40 C	Threaded	2	Panel Mount	Unshielded			Receptacle Male Pins	Lighting	14S-9
SWITCHCRAFT/CONXALL CXS3102A1811P	Brass	Plastic	500 V	Black	Flange	Silver	Keyed	125 °C	-40 C	Threaded	5	Panel Mount	Unshielded	18	11	Receptacle Male Pins	Lighting
SWITCHCRAFT/CONXALL CXS3102A14S6P	Brass	Plastic	500 V	Black	Flange	Silver	Keyed	125 °C	-40 C	Threaded	6	Panel Mount	Unshielded			Receptacle Male Pins	Lighting	14S-6
SWITCHCRAFT/CONXALL CXS3102A2214P	Brass	Plastic	500 V	Black	Flange	Silver	Keyed	125 °C	-40 C	Threaded	19	Panel Mount	Unshielded			Receptacle Male Pins	Lighting	22-14
SWITCHCRAFT/CONXALL CXS3102A14S7P	Brass	Plastic	500 V	Black	Flange	Silver	Keyed	125 °C	-40 C	Threaded		Panel Mount	Unshielded			Receptacle Male Pins	Lighting	14S-7
SWITCHCRAFT/CONXALL CXS3102A2029S	Brass	Plastic	500 V	Black	Flange	Silver	Keyed	125 °C	-40 C	Threaded		Panel Mount	Unshielded			Receptacle Female Sockets	Lighting		20	29
SWITCHCRAFT/CONXALL CXS3102A14S7S	Brass	Plastic	500 V	Black	Flange	Silver	Keyed	125 °C	-40 C	Threaded		Panel Mount	Unshielded			Receptacle Female Sockets	Lighting	14S-7
SWITCHCRAFT/CONXALL CXS3102A207S	Brass	Plastic	500 V	Black	Flange	Silver	Keyed	125 °C	-40 C	Threaded	8	Panel Mount	Unshielded			Receptacle Female Sockets	Lighting	20-7
