CFSA69383 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

OMNI,DBAND,30CM,NF 698-960,1690-4000MHZ

Part	Termination	VSWR	Frequency (Center/Band)	Power - Max [Max]	Applications	Frequency Group	Antenna Type	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Height (Max) [z]	Height (Max) [z]	Gain	Number of Bands	Features

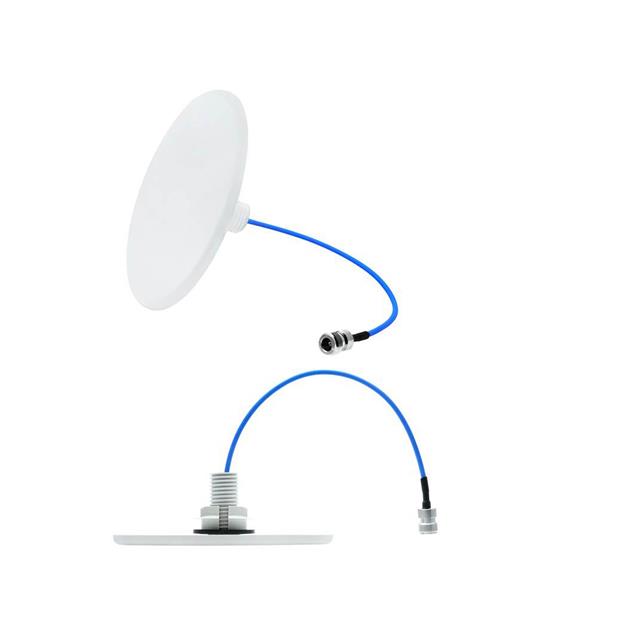

TE Connectivity AMP Connectors CFSA69383P-30NF	N Type Female	2	1.45 GHz 2.75 GHz 829 MHz	50 W	GSM LTE WiMax™	Wide Band	Flat Panel	Cellular WiFi	3.8 GHz 960 MHz 1550 MHz	1.35 GHz 1.69 GHz 698 MHz	Panel Mount	7.6 mm	0.299 in	5.8 dB	3
TE Connectivity AMP Connectors CFSA69383P1-30NF	N Type Female	1.5 1.8 2	1.45 GHz 1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 3.55 GHz 3.9 GHz 752 MHz 859 MHz 920 MHz	50 W	AWS DCS GSM LTE UMTS WiMax™	Wide Band	Flat Panel	Cellular WiFi			Panel Mount	7.62 mm	0.3 in	2.4 dBi 2.6 dBi 3 dBi 3.2 dBi 3.4 dBi 4 dBi 4.2 dBi 4.3 dBi 4.4 dBic 5.4 dBi	11	Cable - 300mm
TE Connectivity AMP Connectors CFSA69383P-30D43F	N Type Female	2	1.45 GHz 2.75 GHz 829 MHz	50 W	GSM LTE WiMax™	Wide Band	Flat Panel	Cellular WiFi	3.8 GHz 960 MHz 1550 MHz	1.35 GHz 1.69 GHz 698 MHz	Panel Mount	7.6 mm	0.299 in	5.8 dB	3
TE Connectivity AMP Connectors CFSA69383P-30NF	N Type Female	2	1.45 GHz 2.75 GHz 829 MHz	50 W	GSM LTE WiMax™	Wide Band	Flat Panel	Cellular WiFi	3.8 GHz 960 MHz 1550 MHz	1.35 GHz 1.69 GHz 698 MHz	Panel Mount	7.6 mm	0.299 in	5.8 dB	3
TE Connectivity AMP Connectors CFSA69383P1-30NF	N Type Female	1.5 1.8 2	1.45 GHz 1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 3.55 GHz 3.9 GHz 752 MHz 859 MHz 920 MHz	50 W	AWS DCS GSM LTE UMTS WiMax™	Wide Band	Flat Panel	Cellular WiFi			Panel Mount	7.62 mm	0.3 in	2.4 dBi 2.6 dBi 3 dBi 3.2 dBi 3.4 dBi 4 dBi 4.2 dBi 4.3 dBi 4.4 dBic 5.4 dBi	11	Cable - 300mm

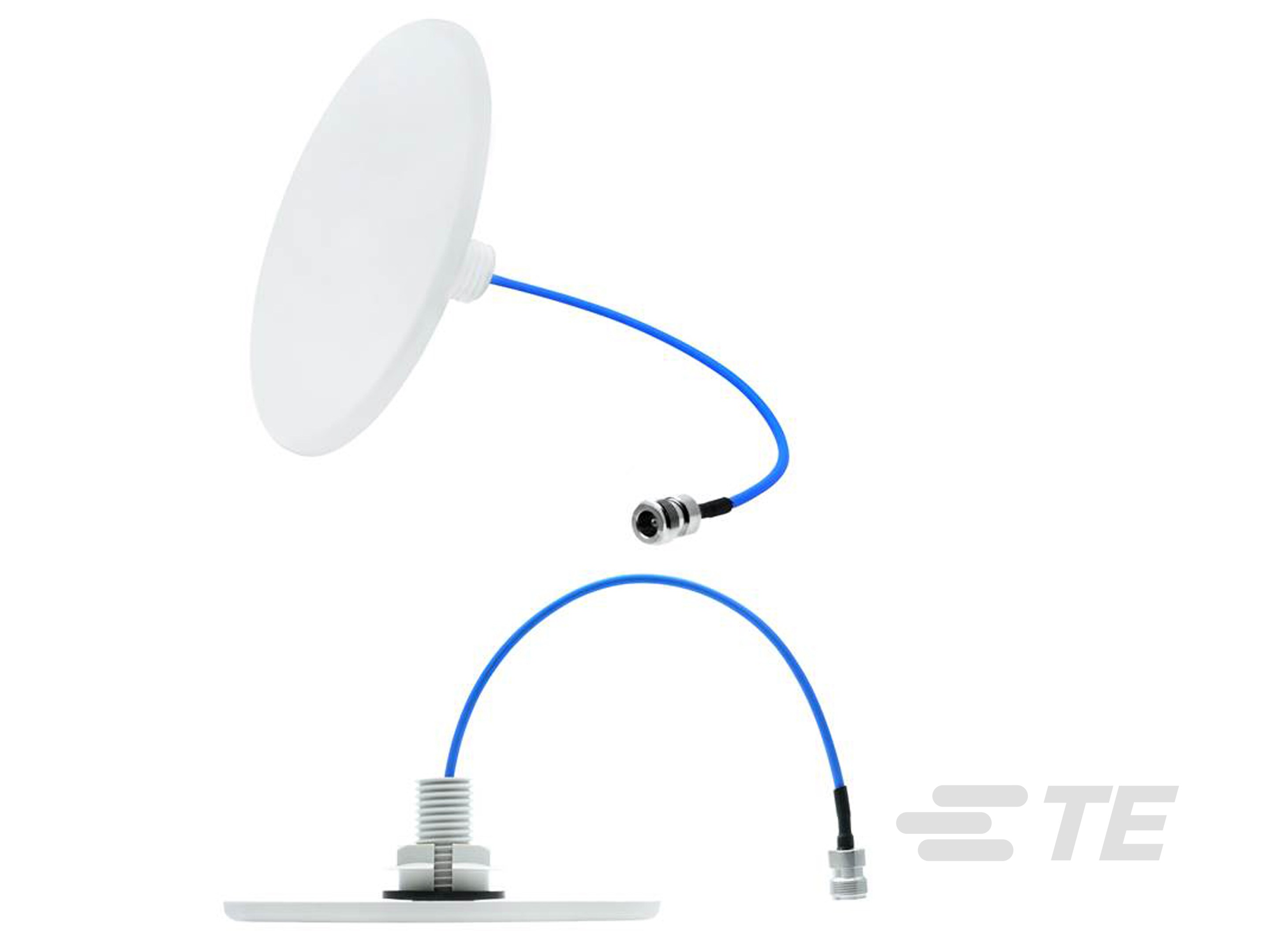

TE Connectivity AMP Connectors CFSA69383P1-30D43F	4.3/10 Female	1.5 1.8 2	1.45 GHz 1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 3.55 GHz 3.9 GHz 752 MHz 859 MHz 920 MHz	50 W	AWS DCS GSM LTE UMTS WiMax™	Wide Band	Flat Panel	Cellular WiFi			Panel Mount	7.62 mm	0.3 in	2.4 dBi 2.6 dBi 3 dBi 3.2 dBi 3.4 dBi 4 dBi 4.2 dBi 4.3 dBi 4.4 dBic 5.4 dBi	11	Cable - 300mm
TE Connectivity AMP Connectors CFSA69383P1-30D43F	4.3/10 Female	1.5 1.8 2	1.45 GHz 1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 3.55 GHz 3.9 GHz 752 MHz 859 MHz 920 MHz	50 W	AWS DCS GSM LTE UMTS WiMax™	Wide Band	Flat Panel	Cellular WiFi			Panel Mount	7.62 mm	0.3 in	2.4 dBi 2.6 dBi 3 dBi 3.2 dBi 3.4 dBi 4 dBi 4.2 dBi 4.3 dBi 4.4 dBic 5.4 dBi	11	Cable - 300mm
TE Connectivity AMP Connectors CFSA69383P-30D43F	N Type Female	2	1.45 GHz 2.75 GHz 829 MHz	50 W	GSM LTE WiMax™	Wide Band	Flat Panel	Cellular WiFi	3.8 GHz 960 MHz 1550 MHz	1.35 GHz 1.69 GHz 698 MHz	Panel Mount	7.6 mm	0.299 in	5.8 dB	3
