0464-1 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Diameter [diameter]	Tail Diameter [diameter]	Termination	Socket Depth	Socket Depth	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material
Mill-Max Manufacturing Corp. 0464-1-15-80-10-84-04-0	-55 C	125 °C	0.014 in	0.36 mm	Solder	2.54 mm	0.1 in	0.94 mm	0.037 in	Standard Tail	9.53 mm	0.375 in	2.54 µm	100 µin	0.028 in	0.71 mm	0.017 "	0.012 "	0.3 mm	0.43 mm	Tin	0.41 mm	0.016 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0464-1-15-01-10-14-04-0	-55 C	125 °C	0.014 in	0.36 mm	Solder	2.54 mm	0.1 in	0.94 mm	0.037 in	Standard Tail	9.53 mm	0.375 in	0.25 Ám	10 Áin	0.028 in	0.71 mm	0.017 "	0.012 "	0.3 mm	0.43 mm	Gold	0.41 mm	0.016 in	Beryllium Copper

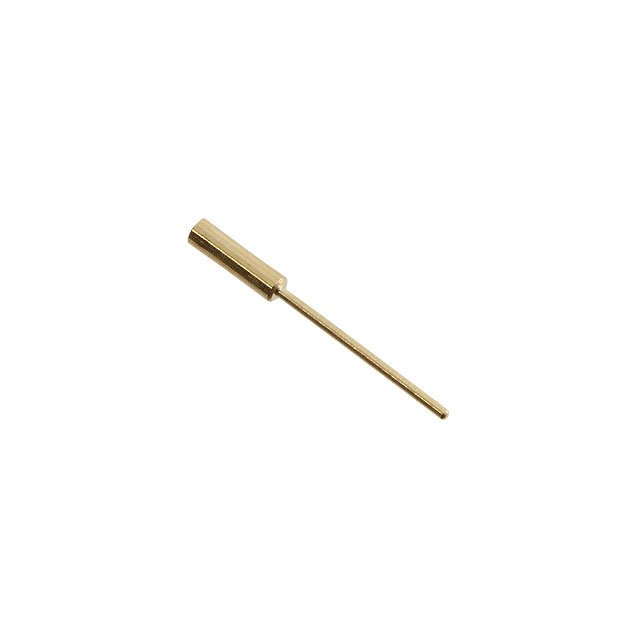

Mill-Max Manufacturing Corp. 0464-1-15-15-10-27-04-0	-55 C	125 °C	0.014 in	0.36 mm	Solder	2.54 mm	0.1 in	0.94 mm	0.037 in	Standard Tail	9.53 mm	0.375 in	0.76 Ám	30 Áin	0.028 in	0.71 mm	0.017 "	0.012 "	0.3 mm	0.43 mm	Gold	0.41 mm	0.016 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0464-1-15-80-10-27-04-0	-55 C	125 °C	0.014 in	0.36 mm	Solder	2.54 mm	0.1 in	0.94 mm	0.037 in	Standard Tail	9.53 mm	0.375 in	0.76 Ám	30 Áin	0.028 in	0.71 mm	0.017 "	0.012 "	0.3 mm	0.43 mm	Gold	0.41 mm	0.016 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0464-1-15-80-10-14-04-0	-55 C	125 °C	0.014 in	0.36 mm	Solder	2.54 mm	0.1 in	0.94 mm	0.037 in	Standard Tail	9.53 mm	0.375 in	0.25 Ám	10 Áin	0.028 in	0.71 mm	0.017 "	0.012 "	0.3 mm	0.43 mm	Gold	0.41 mm	0.016 in	Beryllium Copper

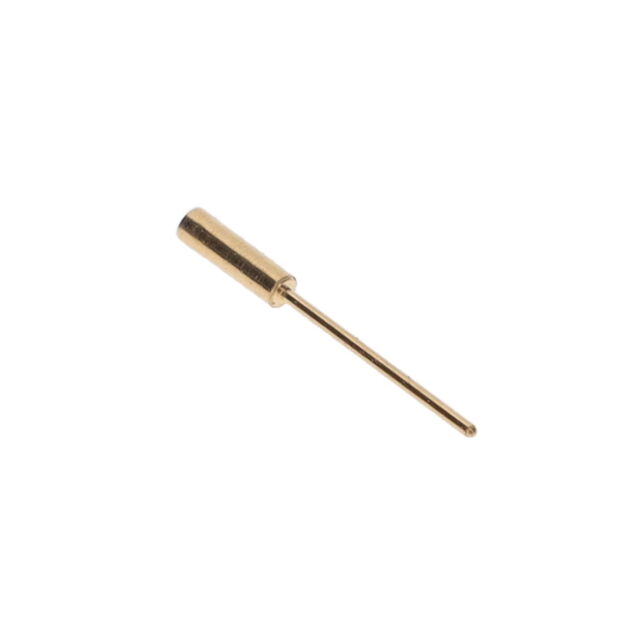

Mill-Max Manufacturing Corp. 0464-1-15-15-10-14-04-0	-55 C	125 °C	0.014 in	0.36 mm	Solder	2.54 mm	0.1 in	0.94 mm	0.037 in	Standard Tail	9.53 mm	0.375 in	0.25 Ám	10 Áin	0.028 in	0.71 mm	0.017 "	0.012 "	0.3 mm	0.43 mm	Gold	0.41 mm	0.016 in	Beryllium Copper
