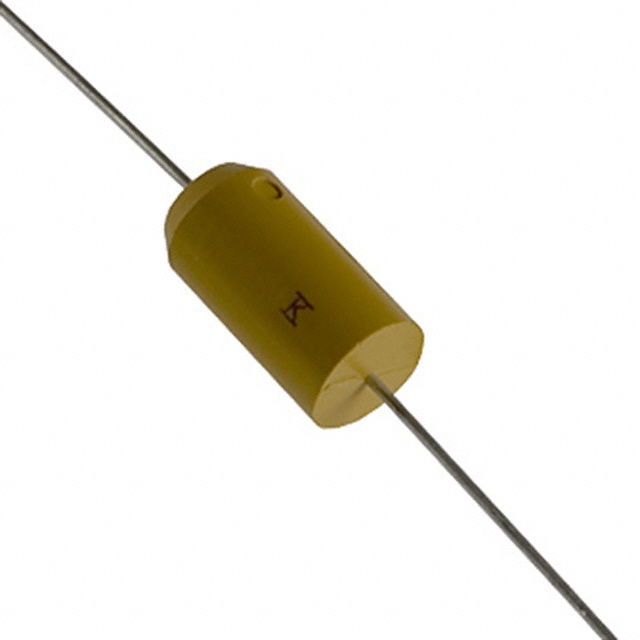

T322E Series
Manufacturer: KEMET
Beta
⌘K
CAP TANT 150UF 10% 6V AXIAL
| Part | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Manufacturer Size Code | Capacitance | Tolerance | Package / Case | Voltage - Rated | ESR (Equivalent Series Resistance) | Features | Mounting Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 0.28 " | 7.11 mm | 0.53 " | 13.46 mm | -55 C | 125 °C | E | 150 µF | 10 % | Axial | 6 VDC | 900 mOhm | General Purpose | Through Hole | Molded |
KEMET | 0.28 " | 7.11 mm | 0.53 " | 13.46 mm | -55 C | 125 °C | E | 22 µF | 10 % | Axial | 35 V | 1.3 Ohm | General Purpose | Through Hole | Molded |
KEMET | 0.28 " | 7.11 mm | 0.53 " | 13.46 mm | -55 C | 125 °C | E | 33 ÁF | 10 % | Axial | 20 V | 1.4 Ohm | General Purpose | Through Hole | Molded |
KEMET | 0.28 " | 7.11 mm | 0.53 " | 13.46 mm | -55 C | 125 °C | E | 220 µF | 10 % | Axial | 6 VDC | 900 mOhm | General Purpose | Through Hole | Molded |
KEMET | 0.28 " | 7.11 mm | 0.53 " | 13.46 mm | -55 C | 125 °C | E | 10 µF | 10 % | Axial | 50 VDC | 1.6 Ohm | General Purpose | Through Hole | Molded |
 KEMET | 0.28 " | 7.11 mm | 0.53 " | 13.46 mm | -55 C | 125 °C | E | 22 µF | 10 % | Axial | 25 VDC | 1.5 Ohm | General Purpose | Through Hole | Molded |
KEMET | 0.28 " | 7.11 mm | 0.53 " | 13.46 mm | -55 C | 125 °C | E | 150 µF | 10 % | Axial | 10 V | 800 mOhm | General Purpose | Through Hole | Molded |
KEMET | 0.28 " | 7.11 mm | 0.53 " | 13.46 mm | -55 C | 125 °C | E | 56 µF | 10 % | Axial | 15 V | 1.3 Ohm | General Purpose | Through Hole | Molded |
 KEMET | 0.28 " | 7.11 mm | 0.53 " | 13.46 mm | -55 C | 125 °C | E | 68 µF | 10 % | Axial | 20 V | 900 mOhm | General Purpose | Through Hole | Molded |
 KEMET | 0.28 " | 7.11 mm | 0.53 " | 13.46 mm | -55 C | 125 °C | E | 68 µF | 10 % | Axial | 15 V | 1 Ohms | General Purpose | Through Hole | Molded |
