2842131 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

10P,2MM,BRK HDR,DRVT,2.8,0.38AU,

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Mounting Type	Insulation Color	Number of Rows	Voltage Rating	Shrouding	Features	Termination	Number of Positions Loaded	Connector Type	Number of Positions

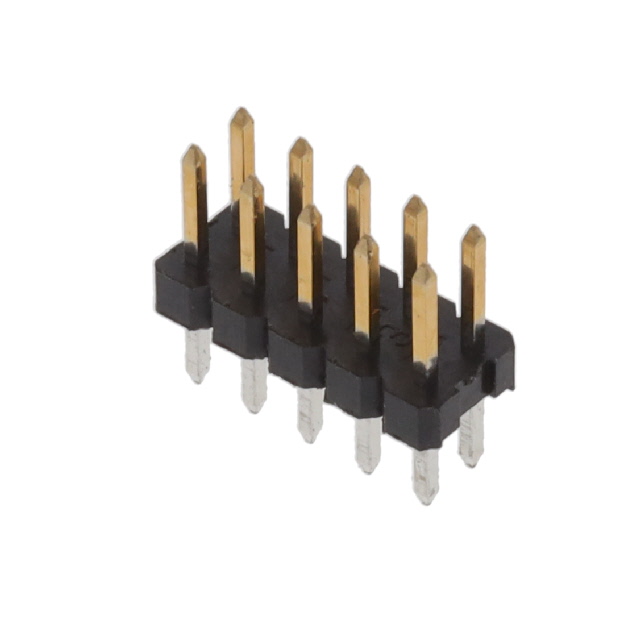

TE Connectivity Raychem Cable Protection 2842131-5	15 µin	0.38 µm	10	8.3 mm	0.327 in	Tin	UL94 V-0	0.11 in	2.79 mm	Thermoplastic	125 °C	-40 °C	Male Pin	Copper Alloy	2 çm	78.7 çin	Push-Pull	1.5 mm	0.059 "	2 A	4 mm	0.157 in	0.079 in	2 mm	Gold	0.079 in	2 mm	Square	Through Hole	Black	2	125 VAC	Unshrouded	Pick and Place	Solder	All	Breakaway Header

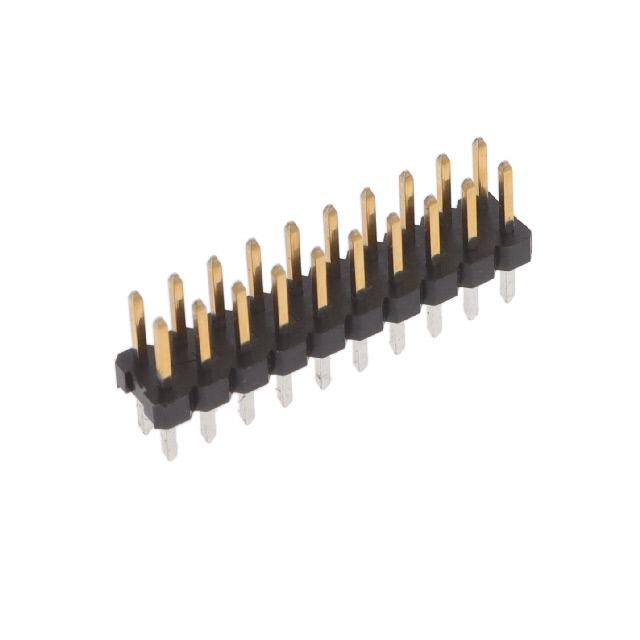

TE Connectivity Raychem Cable Protection 1-2842131-0	15 µin	0.38 µm	20	8.3 mm	0.327 in	Tin	UL94 V-0	0.11 in	2.79 mm	Thermoplastic	125 °C	-40 °C	Male Pin	Copper Alloy	2 çm	78.7 çin	Push-Pull	1.5 mm	0.059 "	2 A	4 mm	0.157 in	0.079 in	2 mm	Gold	0.079 in	2 mm	Square	Through Hole	Black	2	125 VAC	Unshrouded	Pick and Place	Solder	All	Breakaway Header

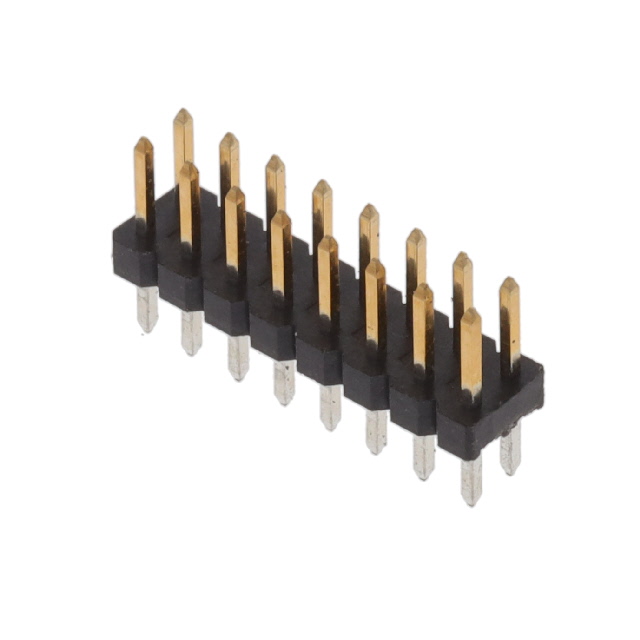

TE Connectivity Raychem Cable Protection 2842131-8	15 µin	0.38 µm		8.3 mm	0.327 in	Tin	UL94 V-0	0.11 in	2.79 mm	Thermoplastic	125 °C	-40 °C	Male Pin	Copper Alloy	2 çm	78.7 çin	Push-Pull	1.5 mm	0.059 "	2 A	4 mm	0.157 in	0.079 in	2 mm	Gold	0.079 in	2 mm	Square	Through Hole	Black	2	125 VAC	Unshrouded	Pick and Place	Solder	All	Breakaway Header	16

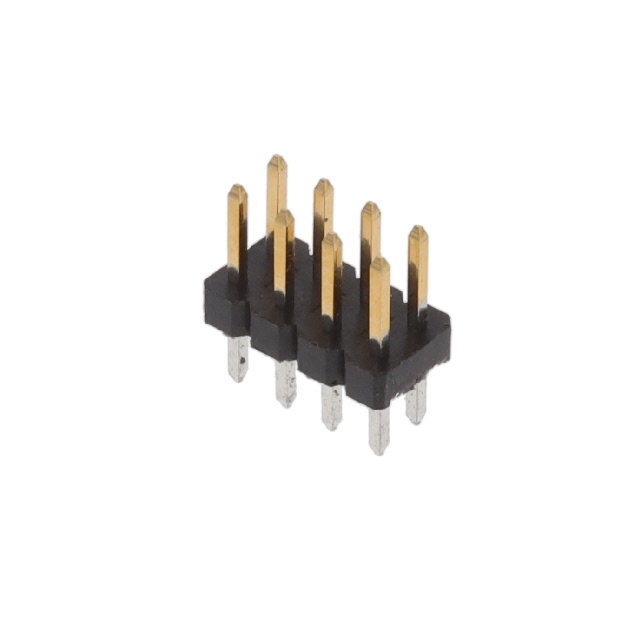

TE Connectivity Raychem Cable Protection 2842131-4	15 µin	0.38 µm	8	8.3 mm	0.327 in	Tin	UL94 V-0	0.11 in	2.79 mm	Thermoplastic	125 °C	-40 °C	Male Pin	Copper Alloy	2 çm	78.7 çin	Push-Pull	1.5 mm	0.059 "	2 A	4 mm	0.157 in	0.079 in	2 mm	Gold	0.079 in	2 mm	Square	Through Hole	Black	2	125 VAC	Unshrouded	Pick and Place	Solder	All	Breakaway Header

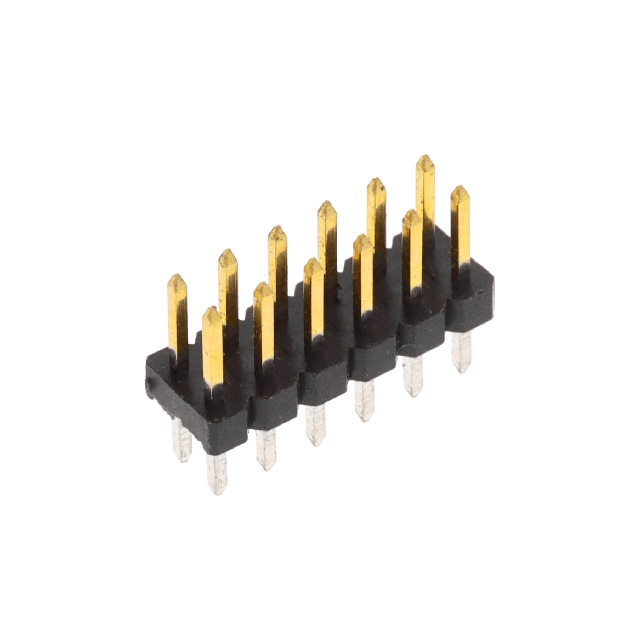

TE Connectivity Raychem Cable Protection 2842131-6	15 µin	0.38 µm	12	8.3 mm	0.327 in	Tin	UL94 V-0	0.11 in	2.79 mm	Thermoplastic	125 °C	-40 °C	Male Pin	Copper Alloy	2 çm	78.7 çin	Push-Pull	1.5 mm	0.059 "	2 A	4 mm	0.157 in	0.079 in	2 mm	Gold	0.079 in	2 mm	Square	Through Hole	Black	2	125 VAC	Unshrouded	Pick and Place	Solder	All	Breakaway Header

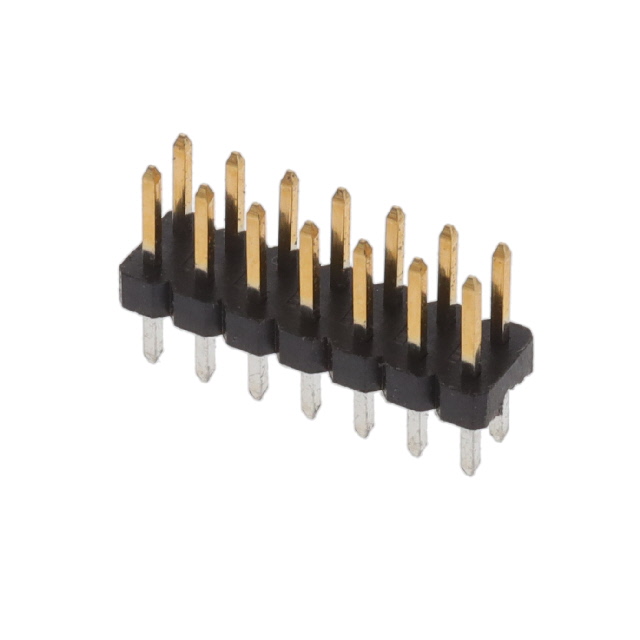

TE Connectivity Raychem Cable Protection 2842131-7	15 µin	0.38 µm	14	8.3 mm	0.327 in	Tin	UL94 V-0	0.11 in	2.79 mm	Thermoplastic	125 °C	-40 °C	Male Pin	Copper Alloy	2 çm	78.7 çin	Push-Pull	1.5 mm	0.059 "	2 A	4 mm	0.157 in	0.079 in	2 mm	Gold	0.079 in	2 mm	Square	Through Hole	Black	2	125 VAC	Unshrouded	Pick and Place	Solder	All	Breakaway Header
