0ZRA Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

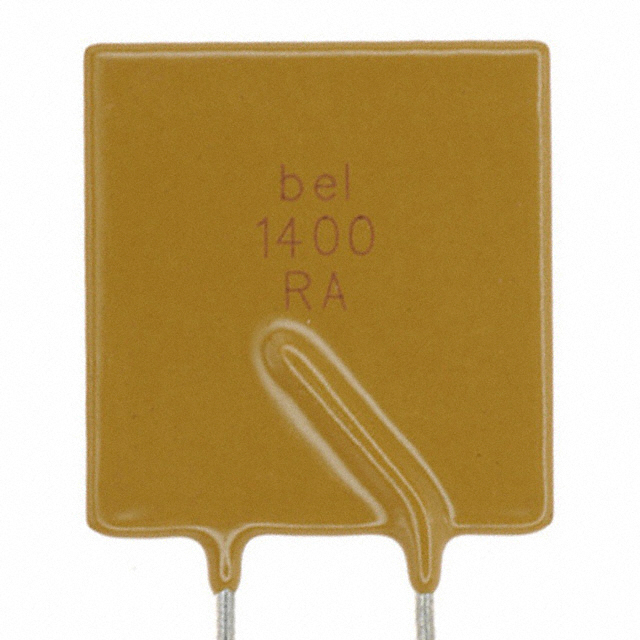

PTC RESET FUSE 16V 14A RADIAL
| Part | Approval Agency | Time to Trip | Mounting Type | Grade | Package / Case | Resistance - Initial (Ri) (Min) [Min] | Current - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Current - Trip (It) | Resistance - Post Trip (R1) (Max) [Max] | Qualification | Voltage - Max [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Current - Hold (Ih) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | cURus TUV | 20 s | Through Hole | Automotive | Disc Radial | 2 mOhms | 100 A | 85 °C | -40 C | Polymeric | 23.8 A | 8 mOhms | AEC-Q200 | 16 V | 1.098 in | 27.9 mm | 0.142 " | 1.098 " | 3.6 mm | 27.9 mm | 14 A |
