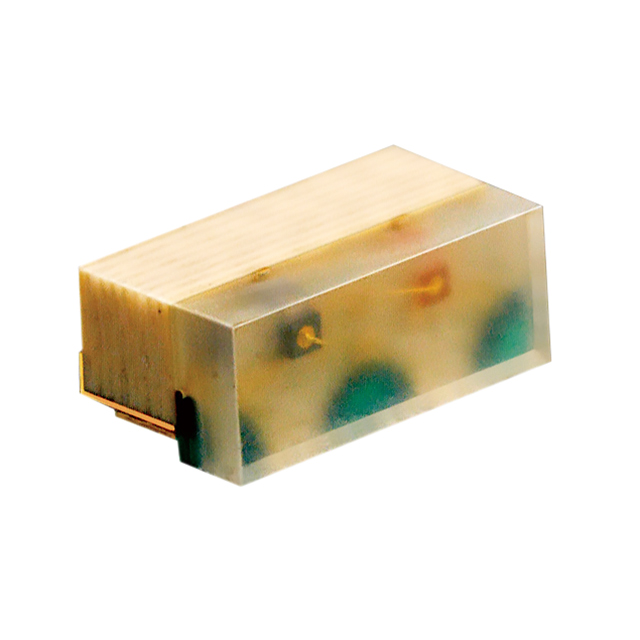

CL-375 Series
Manufacturer: Citizen Finedevice Co Ltd
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
LED GREEN/RED SMD R/A
| Part | Height (Max) | Lens Length | Lens Width | Configuration | Package / Case | Current - Test (Green) | Current - Test Colors | Current - Test (Red) | Millicandela Rating Colors | Millicandela Rating (Green) | Millicandela Rating (Red) | Color | Size / Dimension Length | Size / Dimension Width | Voltage - Forward (Vf) (Typ) Color | Voltage - Forward (Vf) (Typ) (Red) | Voltage - Forward (Vf) (Typ) (Green) | Wavelength - Dominant Color | Wavelength - Dominant (Green) | Wavelength - Dominant (Red) | Mounting Type | Lens Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Citizen Finedevice Co Ltd | 1 mm | 2.4 mm | 1 mm | Common Anode | 3-SMD No Lead | 20 mA | Green Red | 20 mA | Green Red | 18 mcd | 23 mcd | Green Red | 2.4 mm | 1.35 mm | Green Red | 1.8 V | 2.2 V | Green Red | 570 nm | 660 nm | Right Angle Surface Mount | Flat Top Rectangle |
