H2173 Series
Manufacturer: Harwin Inc.
Beta
⌘K
TERMINAL, TURRET, 1.14MM, NON INSULATED ROHS COMPLIANT: YES
| Part | Length - Below Flange [x] | Length - Below Flange [x] | Board Thickness | Board Thickness | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Terminal Style | Length - Above Flange | Length - Above Flange | Terminal Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Insulation | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Contact Finish | Length - Overall [x] | Length - Overall [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

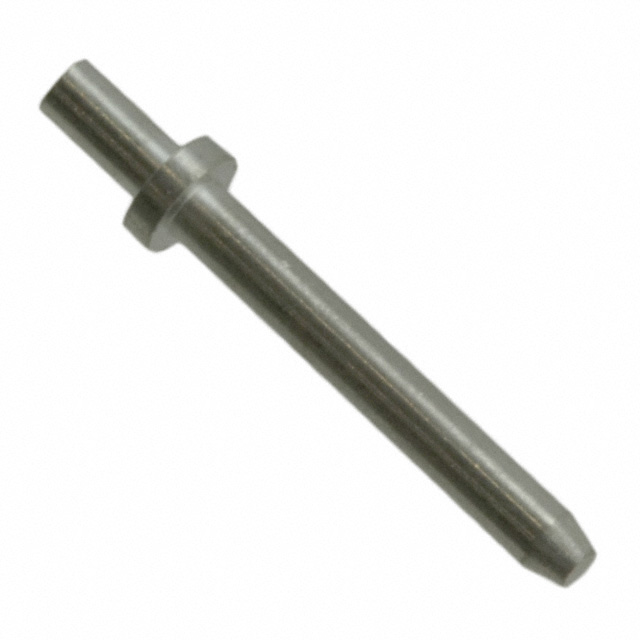

 Harwin Inc. | 2.08 mm | 0.082 " | 0.063 in | 1.6 mm | 1.04 mm | 1.14 mm | 0.041 in | 0.045 in | Single End | 0.3 in | 7.62 mm | PC Pin | 0.041 in | 1.04 mm | Non-Insulated | Brass | 1.77 mm | 0.07 in | Swage | Tin | 0.402 " | 10.2 mm | Through Hole |

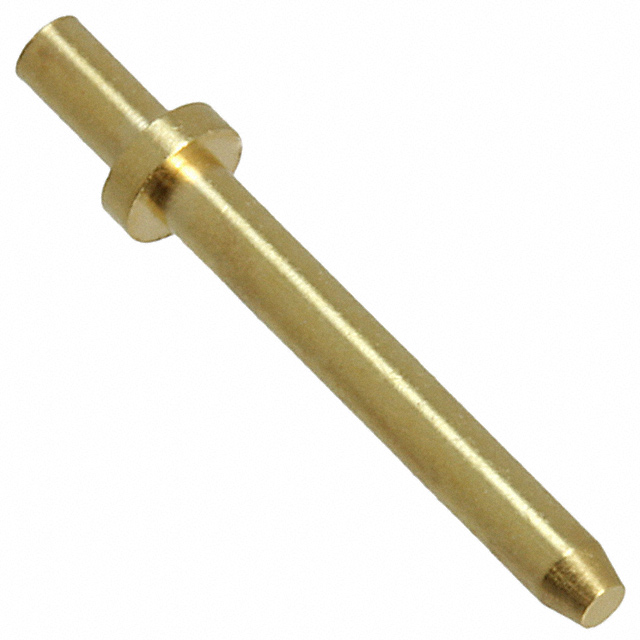

 Harwin Inc. | 2.08 mm | 0.082 " | 0.063 in | 1.6 mm | 1.04 mm | 1.14 mm | 0.041 in | 0.045 in | Single End | 0.3 in | 7.62 mm | PC Pin | 0.041 in | 1.04 mm | Non-Insulated | Brass | 1.77 mm | 0.07 in | Swage | Gold | 0.402 " | 10.2 mm | Through Hole |
