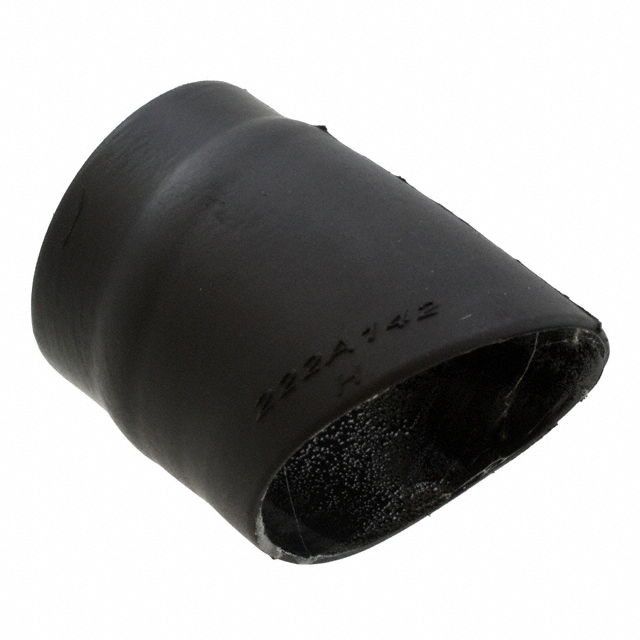

222A142 Series

Catalog

STD POLY MOLDED PARTS

Part	Type	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Shell Size - Insert	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Recovered Length	Large Recovered Length	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Material	Color	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Recovered Length	Small Recovered Length	Features
TE Connectivity Aerospace, Defense and Marine 222A142-3-0-CS5501	Boot - 90°	1.28 in	32.51 mm	42	17.27 mm	0.68 "	1.2 in	30.48 mm	0.9 "	22.86 mm	Polyolefin (PO) Semi-Rigid	Black	1.28 in	32.51 mm	0.4 in	10.16 mm

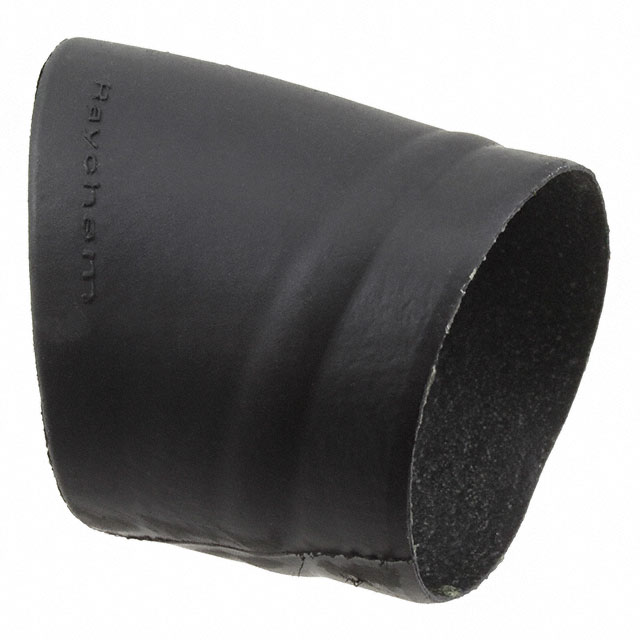

TE Connectivity Aerospace, Defense and Marine 222A142-25/86-0	Boot - 90°	1.28 in	32.51 mm	42	17.3 mm	0.681 "	1.201 in	30.51 mm	0.272 "	6.91 mm	Elastomer Semi-Rigid	Black	1.28 in	32.51 mm	0.98 in	24.89 mm	Adhesive Coating Fluid Resistant
TE Connectivity Aerospace, Defense and Marine 222A142-25/225-0	Boot - 90°	1.28 in	32.51 mm	42	17.3 mm	0.681 "	1.201 in	30.51 mm	0.272 "	6.91 mm	Elastomer Semi-Rigid	Black	1.28 in	32.51 mm	0.98 in	24.89 mm	Adhesive Coating Fluid Resistant
TE Connectivity Aerospace, Defense and Marine 222A142-25/42-0
TE Connectivity Aerospace, Defense and Marine 222A142-25-CS-2065-0	Boot - 90°	1.28 in	32.51 mm	42	17.27 mm	0.68 "	1.2 in	30.48 mm	0.9 "	22.86 mm	Elastomer Fluid Resistant	Black	1.28 in	32.51 mm	0.4 in	10.16 mm
TE Connectivity Aerospace, Defense and Marine 222A142-3-0	Boot - 90°	1.28 in	32.51 mm	42	17.3 mm	0.681 "	1.201 in	30.51 mm	0.272 "	6.91 mm	Polyolefin (PO) Semi-Rigid	Black	1.28 in	32.51 mm	0.98 in	24.89 mm
