SM30S Series

Catalog

SM30 SERIES: RECEIVER - FREQUENCY C STAINLESS STL

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Connection Method	Response Time	Cable Length	Cable Length	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Distance	Sensing Distance	Sensing Method	Output Configuration	Light Source
BANNER ENGINEERING SM30SRLC	IEC IEC IP67 IP67 NEMA 6P	70 °C	-40 C	Cable	10 ms	78.74 "	2 m	10 VDC	30 VDC	150 m	492.13 '	Through-Beam	NPN/PNP - Dark-ON/Light-ON - Selectable	Infrared
BANNER ENGINEERING SM30SN6RQ	IEC IEC IP67 IP67 NEMA 6P	70 °C	-40 C	Connector	3 ms			10 VDC	30 VDC	60 m	196.85 ft	Through-Beam		Infrared (880nm)

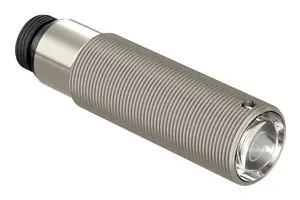

BANNER ENGINEERING SM30SRLQD	IP67 NEMA 6P	70 °C	-40 C	Connector				10 VDC	30 VDC	150 m	492.13 '	Reflective	Dark-ON/Light-ON NPN/PNP	Infrared (880nm)
BANNER ENGINEERING SM30SRL W/30	IEC IEC IP67 IP67 NEMA 6P	70 °C	-40 C	Cable	10 ms	78.74 "	2 m	10 VDC	30 VDC	150 m	492.13 '	Through-Beam	NPN/PNP - Dark-ON/Light-ON - Selectable	Infrared
