1609112 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Mounting Type	Current Rating - Appliance Inlet	Panel Thickness [custom]	Panel Thickness [custom]	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Connector Type	Approval Agency	Termination	Termination	Connector Style	Filter Type	Switch Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness	Panel Thickness	Current Rating - Filter
TE Connectivity Raychem Cable Protection 1-1609112-9	Panel Mount Snap-In	15 A	0.059 in	1.5 mm	250 VAC	120 VAC	Receptacle Male Blades - Module	CSA UL VDE	0.189 " 4.8 mm	Quick Connect	IEC 320-C14	Unfiltered - Commercial	Switch On-Off	26.7 mm	31.6 mm
TE Connectivity Raychem Cable Protection 1-1609112-3	Panel Mount Snap-In	15 A			250 VAC	120 VAC	Receptacle Male Blades - Module	CSA UL VDE	0.189 " 4.8 mm	Quick Connect	IEC 320-C14	Unfiltered - Commercial	Switch On-Off	26.7 mm	31.6 mm	0.098 in	2.49 mm	0.79 mm	0.031 "
TE Connectivity Raychem Cable Protection 1-1609112-6	Panel Mount Snap-In	15 A			250 VAC	120 VAC	Receptacle Male Blades - Module	CSA UL VDE	0.189 " 4.8 mm	Quick Connect	IEC 320-C14	Unfiltered - Commercial	Switch On-Off	26.7 mm	31.6 mm					1 mm	0.039 in

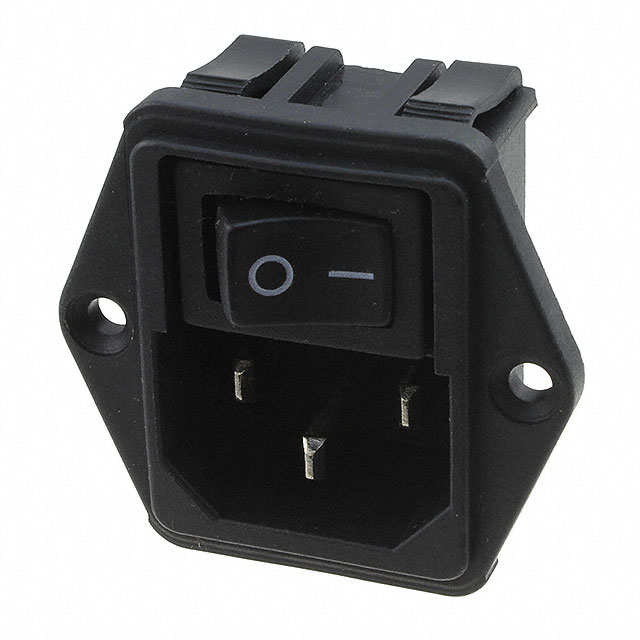

TE Connectivity Raychem Cable Protection 1609112-1	Flange Panel Mount	10 A			250 VAC	120 VAC	Receptacle Male Blades - Module	CSA UL VDE	0.189 " 4.8 mm	Quick Connect	IEC 320-C14	Unfiltered - Commercial	Switch On-Off	28.09 mm	39.12 mm
TE Connectivity Raychem Cable Protection 1-1609112-8	Panel Mount Snap-In	15 A	0.059 in	1.5 mm	250 VAC	120 VAC	Receptacle Male Blades - Module	CSA UL VDE	0.189 " 4.8 mm	Quick Connect	IEC 320-C14	Unfiltered - Commercial	Switch On-Off	26.7 mm	31.6 mm

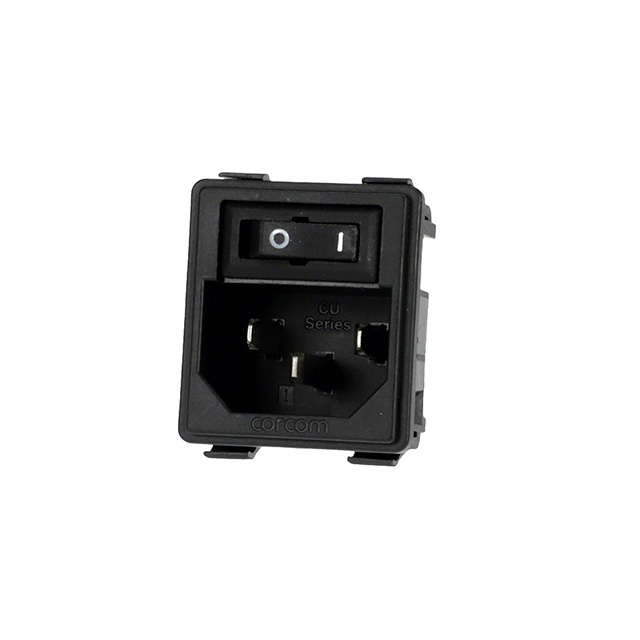

TE Connectivity Raychem Cable Protection 1-1609112-5	Panel Mount Snap-In	15 A			250 VAC	120 VAC	Receptacle Male Blades - Module	CSA UL VDE	0.189 " 4.8 mm	Quick Connect	IEC 320-C14	Unfiltered - Commercial	Switch On-Off	26.7 mm	31.6 mm	0.083 "	2.1 mm	0.63 mm	0.025 "
TE Connectivity Raychem Cable Protection 1-1609112-1	Panel Mount Snap-In	15 A			250 VAC	120 VAC	Receptacle Male Blades - Module	CSA UL VDE	0.189 " 4.8 mm	Quick Connect	IEC 320-C14	Filtered (EMI RFI) - Commercial	Switch On-Off	26.7 mm	31.6 mm	0.098 in	2.49 mm	0.79 mm	0.031 "			15 A
