PV12 Series

Catalog

RING TONGUE TERMINAL, M4, #8, 12 AWG, 4 MM², PV-HDR SERIES, YELLOW

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Color	Width - Outer Edges	Width - Outer Edges	Insulation	Termination	Contact Finish	Mounting Type	Contact Material	Thickness	Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Stud/Tab Size	Terminal Type	Features	Width - Outer Edges [y]	Width - Outer Edges [y]	Width - Outer Edges [x]	Width - Outer Edges [x]
Panduit Corp PV12-8HDR-L	5.72 mm	0.225 "	Vinyl	26.67 mm	1.05 in	Yellow	7.87 mm	0.31 in	Insulated	Crimp	Tin	Free Hanging (In-Line)	Copper	50 mils	0.05 in	16 AWG	12 AWG	8 Stud	Circular	Brazed Seam Heavy Duty Serrated Termination

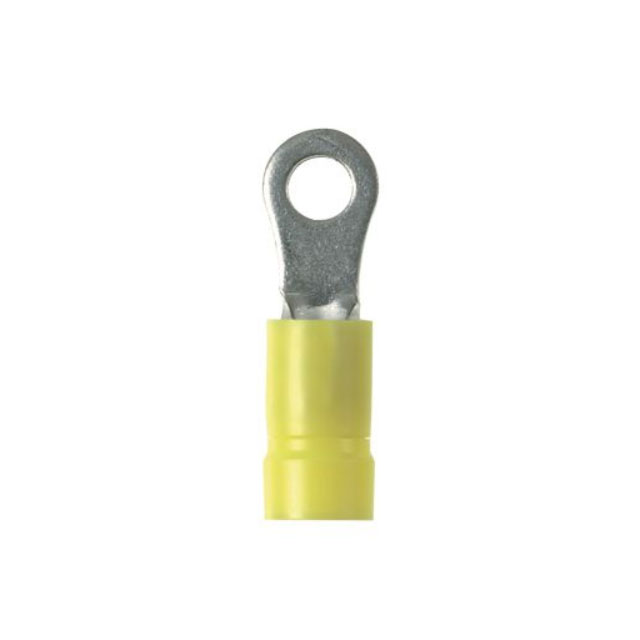

Panduit Corp PV12-14HDR-L	5.72 mm	0.225 "	Vinyl	31.24 mm	1.23 in	Yellow	13.21 mm	0.52 in	Insulated	Crimp	Tin	Free Hanging (In-Line)	Copper	50 mils	0.05 in	16 AWG	12 AWG	0.25 Stud	Circular	Brazed Seam Heavy Duty Serrated Termination
Panduit Corp PV12-56HDRB-2K				31.24 mm	1.23 in	Yellow	13.21 mm	0.52 in	Insulated	Crimp	Tin	Free Hanging (In-Line)	Copper	50 mils	0.05 in	16 AWG	12 AWG	0.3125 Stud	Circular	Butted Seam Heavy Duty

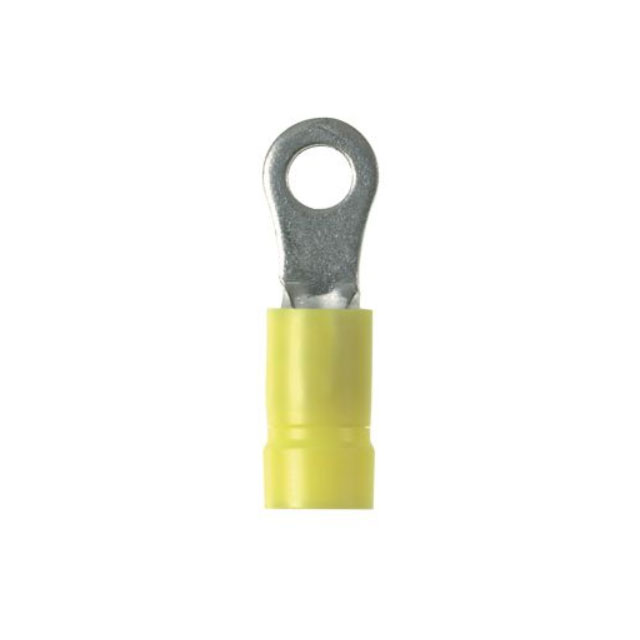

Panduit Corp PV12-10HDR-L	5.72 mm	0.225 "	Vinyl	27.43 mm	1.08 in	Yellow			Insulated	Crimp	Tin	Free Hanging (In-Line)	Copper	50 mils	0.05 in	16 AWG	12 AWG	10 Stud	Circular	Brazed Seam Heavy Duty Serrated Termination	0.37 in	9.4 mm

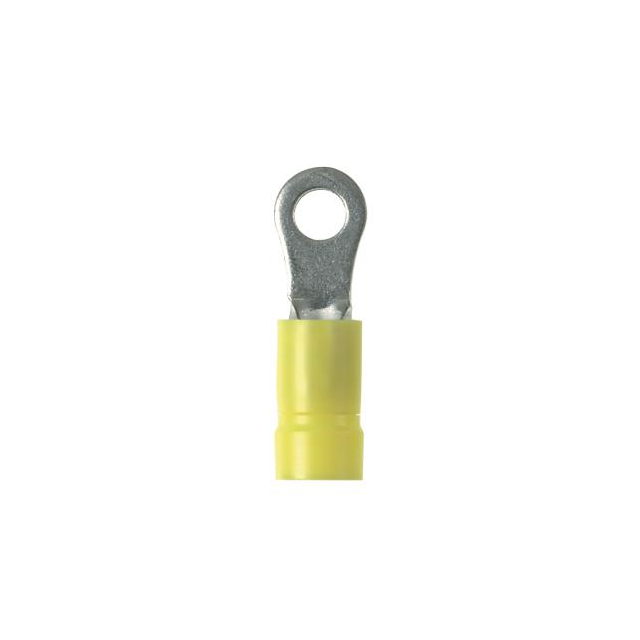

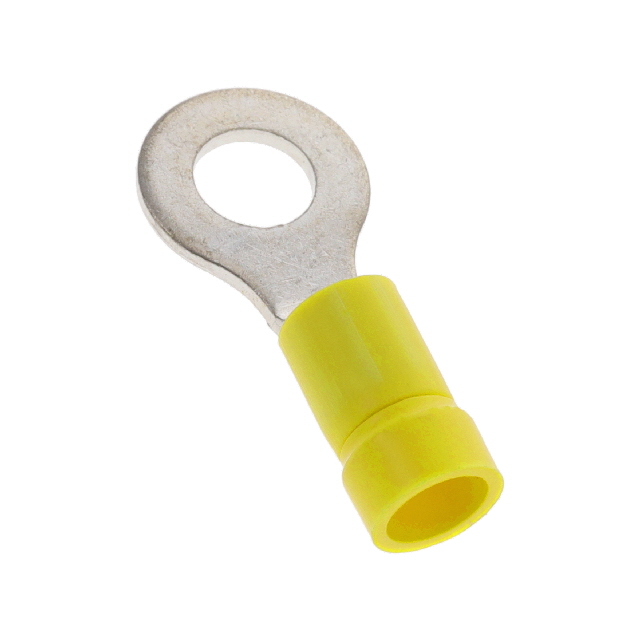

Panduit Corp PV12-14HDR-D	5.72 mm	0.225 "	Vinyl	31.24 mm	1.23 in	Yellow	13.21 mm	0.52 in	Insulated	Crimp	Tin	Free Hanging (In-Line)	Copper	50 mils	0.05 in	16 AWG	12 AWG	0.25 Stud	Circular	Brazed Seam Heavy Duty Serrated Termination
Panduit Corp PV12-6HDR-D	5.72 mm	0.225 "	Vinyl	26.67 mm	1.05 in	Yellow	7.87 mm	0.31 in	Insulated	Crimp	Tin	Free Hanging (In-Line)	Copper	50 mils	0.05 in	16 AWG	12 AWG	6 Stud	Circular	Brazed Seam Heavy Duty Serrated Termination
Panduit Corp PV12-38HDR-D	5.72 mm	0.225 "	Vinyl	33.27 mm	1.31 in	Yellow			Insulated	Crimp	Tin	Free Hanging (In-Line)	Copper	50 mils	0.05 in	16 AWG	12 AWG	0.375 Stud	Circular	Brazed Seam Heavy Duty Serrated Termination			14.73 mm	0.58 in
Panduit Corp PV12-38HDRB-2K	5.72 mm	0.225 "	Vinyl	33.02 mm	1.3 "	Yellow			Insulated	Crimp	Tin	Free Hanging (In-Line)	Copper	50 mils	0.05 in	16 AWG	12 AWG	0.375 Stud	Circular	Butted Seam Heavy Duty			14.73 mm	0.58 in
