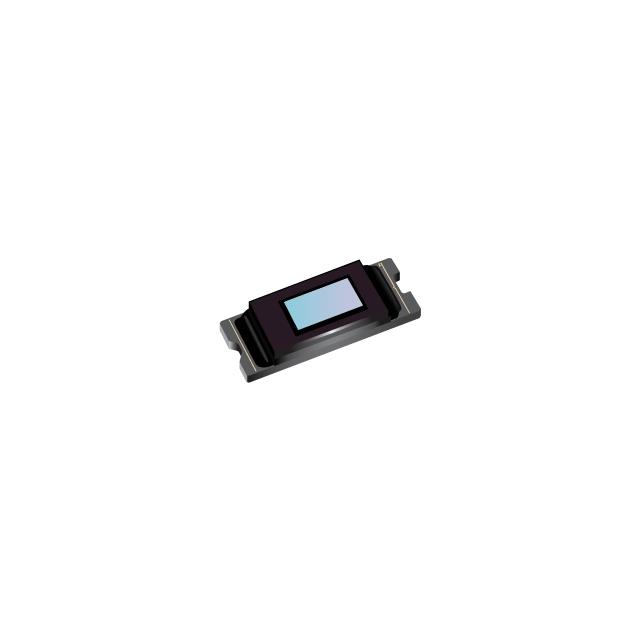

DLP301S Series
0.3-inch WQHD high-power near-UV DLP® digital micromirror device (DMD)
Manufacturer: Texas Instruments
Catalog
0.3-inch WQHD high-power near-UV DLP® digital micromirror device (DMD)
Key Features
• 0.3-Inch (7.93-mm) diagonal micromirror array1280 × 720 array of aluminum micrometer-sized mirrors, in an orthogonal layout3.6 Megapixels, 2560 × 1440 pixels on the resin5.4-micron micromirror pitch±17° micromirror tilt (relative to flat surface)Side illumination for optimal efficiency and optical engine sizePolarization independent aluminum micromirror surface8-Bit SubLVDS input data busDedicated DLPC1438 3D print controller and DLPA200x or DLPA300x PMIC/LED driver for reliable operation0.3-Inch (7.93-mm) diagonal micromirror array1280 × 720 array of aluminum micrometer-sized mirrors, in an orthogonal layout3.6 Megapixels, 2560 × 1440 pixels on the resin5.4-micron micromirror pitch±17° micromirror tilt (relative to flat surface)Side illumination for optimal efficiency and optical engine sizePolarization independent aluminum micromirror surface8-Bit SubLVDS input data busDedicated DLPC1438 3D print controller and DLPA200x or DLPA300x PMIC/LED driver for reliable operation
Description
AI
The DLP301S digital micromirror device (DMD) is a digitally controlled micro-opto-electromechanical system (MOEMS) spatial light modulator (SLM). When coupled to an appropriate optical system, the DMD displays a very crisp and high-quality image. This DMD is a component of the chipset comprising the DLP301S DMD,DLPC14383D Print controller, andDLPA200x/DLPA300xPMIC/LED driver. The compact physical size of this DMD coupled with the controller and the PMIC/LED driver provides a complete system solution that enables high output optical engines for fast, high resolution, reliable DLP 3D printers.
Learn more about TI DLP(R) 3D printing technology on the3D printing and direct imaging products page.
The DLP advanced light control resources onti.comaccelerate time to market, which includereference designs,optical modules manufacturers, andDLP design network partners.
The DLP301S digital micromirror device (DMD) is a digitally controlled micro-opto-electromechanical system (MOEMS) spatial light modulator (SLM). When coupled to an appropriate optical system, the DMD displays a very crisp and high-quality image. This DMD is a component of the chipset comprising the DLP301S DMD,DLPC14383D Print controller, andDLPA200x/DLPA300xPMIC/LED driver. The compact physical size of this DMD coupled with the controller and the PMIC/LED driver provides a complete system solution that enables high output optical engines for fast, high resolution, reliable DLP 3D printers.
Learn more about TI DLP(R) 3D printing technology on the3D printing and direct imaging products page.
The DLP advanced light control resources onti.comaccelerate time to market, which includereference designs,optical modules manufacturers, andDLP design network partners.
