OSTVJ03 Series

Catalog

TERM BLK 3POS SIDE ENTRY 5MM PCB

Part	Housing Material	Screw Material - Plating	Torque - Screw	Torque - Screw	Contact Material - Plating	Screw Thread	Operating Temperature [Min]	Operating Temperature [Max]	Clamp Material - Plating	Pitch	Pitch	Features	Mating Orientation	Current	Mounting Type	Number of Levels	Wire Gauge [Max]	Wire Gauge [Min]	Positions Per Level	Wire Termination	Color	Voltage
On Shore Technology Inc. OSTVJ030151	Thermoplastic	Steel - Zinc Plated	3.5 Lb-In	0.4 Nm	Brass	M3	-30 ░C	105 ░C	Brass	0.197 in	5 mm	Interlocking (Side)	Horizontal with Board	20 A	Through Hole	1	30 AWG	12 AWG	3	Screw - Rising Cage Clamp	Green	300 VDC
On Shore Technology Inc. OSTVJ034155	Thermoplastic	Steel - Zinc Plated	3.5 Lb-In	0.4 Nm		M3	-40 C	115 °C	Brass - Nickel Plated	0.295 in	7.5 mm	Interlocking (Side)	Horizontal with Board	20 A	Through Hole	1	30 AWG	12 AWG	3	Screw - Rising Cage Clamp	Green	300 VDC

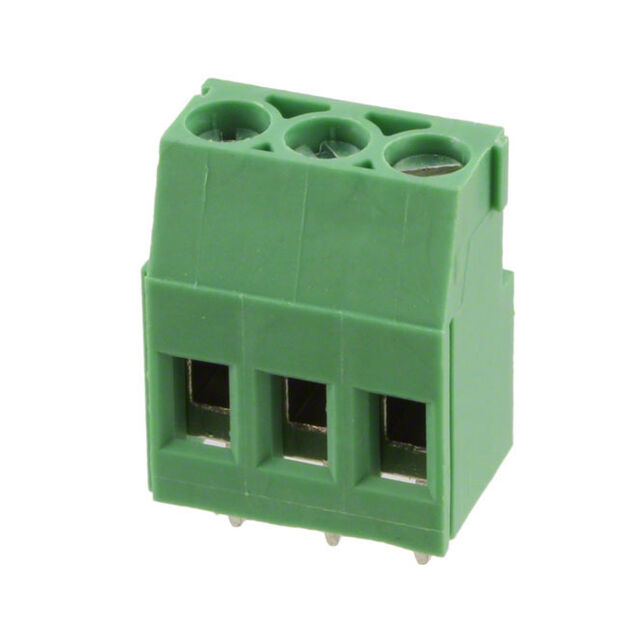

On Shore Technology Inc. OSTVJ030152	Thermoplastic	Steel - Zinc Plated	3.5 Lb-In	0.4 Nm	Brass	M3	-30 ░C	105 ░C	Brass	0.197 in	5 mm	Interlocking (Side)	Horizontal with Board	20 A	Through Hole	1	30 AWG	12 AWG	3	Screw - Rising Cage Clamp	Green	300 VDC
On Shore Technology Inc. OSTVJ034153	Thermoplastic	Steel - Zinc Plated	3.5 Lb-In	0.4 Nm		M3	-40 C	115 °C	Brass - Nickel Plated	0.295 in	7.5 mm	Interlocking (Side)	Vertical with Board	20 A	Through Hole	1	30 AWG	12 AWG	3	Screw - Rising Cage Clamp	Green	300 VDC
On Shore Technology Inc. OSTVJ036150	Thermoplastic	Steel - Zinc Plated	3.5 Lb-In	0.4 Nm	Brass	M3	-30 ░C	105 ░C	Brass	0.3 in	7.62 mm	Interlocking (Side)	Vertical with Board	20 A	Through Hole	1	30 AWG	12 AWG	3	Screw - Rising Cage Clamp	Green	300 VDC
On Shore Technology Inc. OSTVJ032150	Thermoplastic	Steel - Zinc Plated	3.5 Lb-In	0.4 Nm	Brass	M3	-30 ░C	105 ░C	Brass	0.2 in	5.08 mm	Interlocking (Side)	Vertical with Board	20 A	Through Hole	1	30 AWG	12 AWG	3	Screw - Rising Cage Clamp	Green	300 VDC
On Shore Technology Inc. OSTVJ036153	Thermoplastic	Steel - Zinc Plated	3.5 Lb-In	0.4 Nm		M3	-40 C	115 °C	Brass - Nickel Plated	0.3 in	7.62 mm	Interlocking (Side)	Vertical with Board	20 A	Through Hole	1	30 AWG	12 AWG	3	Screw - Rising Cage Clamp	Green	300 VDC
On Shore Technology Inc. OSTVJ032152	Thermoplastic	Steel - Zinc Plated	3.5 Lb-In	0.4 Nm	Brass	M3	-30 ░C	105 ░C	Brass	0.2 in	5.08 mm	Interlocking (Side)	Horizontal with Board	20 A	Through Hole	1	30 AWG	12 AWG	3	Screw - Rising Cage Clamp	Green	300 VDC
On Shore Technology Inc. OSTVJ034152	Thermoplastic	Steel - Zinc Plated	3.5 Lb-In	0.4 Nm	Brass	M3	-30 ░C	105 ░C	Brass	0.295 in	7.5 mm	Interlocking (Side)	Horizontal with Board	20 A	Through Hole	1	30 AWG	12 AWG	3	Screw - Rising Cage Clamp	Green	300 VDC
On Shore Technology Inc. OSTVJ032151	Thermoplastic	Steel - Zinc Plated	3.5 Lb-In	0.4 Nm	Brass	M3	-30 ░C	105 ░C	Brass	0.2 in	5.08 mm	Interlocking (Side)	Horizontal with Board	20 A	Through Hole	1	30 AWG	12 AWG	3	Screw - Rising Cage Clamp	Green	300 VDC
