45003 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

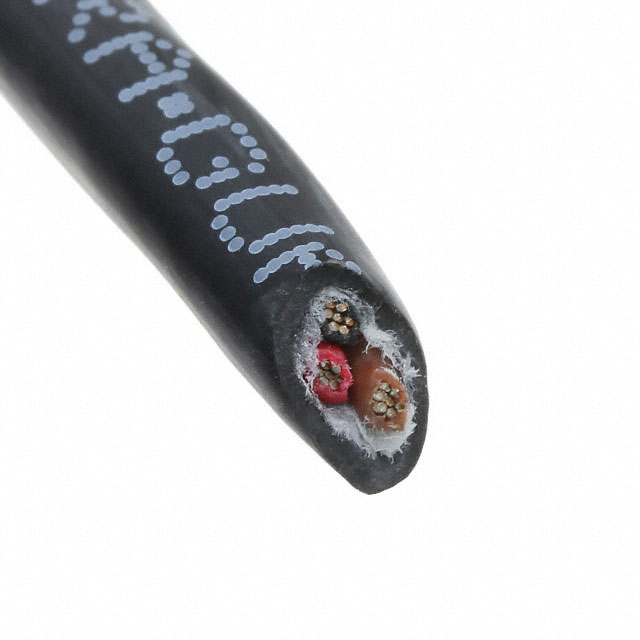

CABLE 3 COND 22AWG BLACK 100'
| Part | Jacket Color | Features | Number of Conductors | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Voltage | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Length [x] | Length [x] | Cable Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Black | Biological Compatibility Rip Cord | 3 | Thermoplastic Elastomer (TPE) | 7 | 30 AWG | 22 AWG | 300 V | 5.79 mm | 0.228 in | 1.143 mm | 0.045 in | ISO 10993 | Thermoplastic Elastomer (TPE) | -50 °C | 125 °C | Copper Tinned | 30.5 m | 100 ft | Multi-Conductor | ||
ALPHA WIRE | Slate | Biological Compatibility Rip Cord | 3 | Thermoplastic Elastomer (TPE) | 7 | 30 AWG | 22 AWG | 300 V | 5.79 mm | 0.228 in | 1.143 mm | 0.045 in | ISO 10993 | Thermoplastic Elastomer (TPE) | -50 °C | 125 °C | Copper Tinned | Multi-Conductor | 1000 ft | 304.8 m |
