T 3274 Series

Catalog

CONN PLUG HSNG MALE 3POS INLINE

Part	Contact Size	Shell Material	Features	Contact Shape	Fastening Type	Housing Color	Ingress Protection	Type	Shielding	Insert Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Size - Insert	Connector Type	Material Flammability Rating	Contact Type	Note	Voltage Rating	Color	Shell Finish	Primary Material	Current Rating (Amps)	Contact Finish - Mating

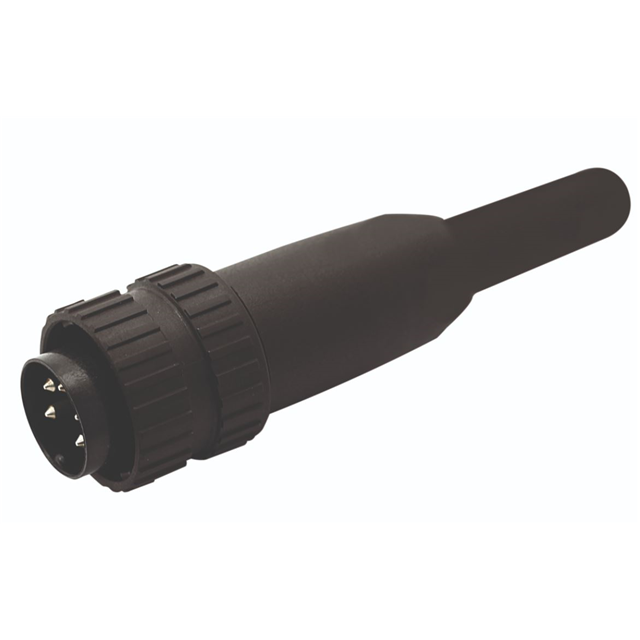

Amphenol Tuchel Industrial T 3274 951	1.5 mm	Plastic	Coupling Nut Strain Relief	Circular	Bayonet Lock	Black	IP40	For Male Pins	Unshielded	Thermoplastic	Free Hanging (In-Line)	-40 C	100 °C	Keyed	M16-3	Plug Housing	UL94 V-0	Crimp	Contacts Not Included
Amphenol Tuchel Industrial T 3274 518		Die Cast	Strain Relief		Bayonet Lock		IP40				Free Hanging (In-Line)	-40 C	100 °C	Keyed	M16-3	Plug Male Pins				250 V	Silver	Nickel	Metal	10 A	Gold

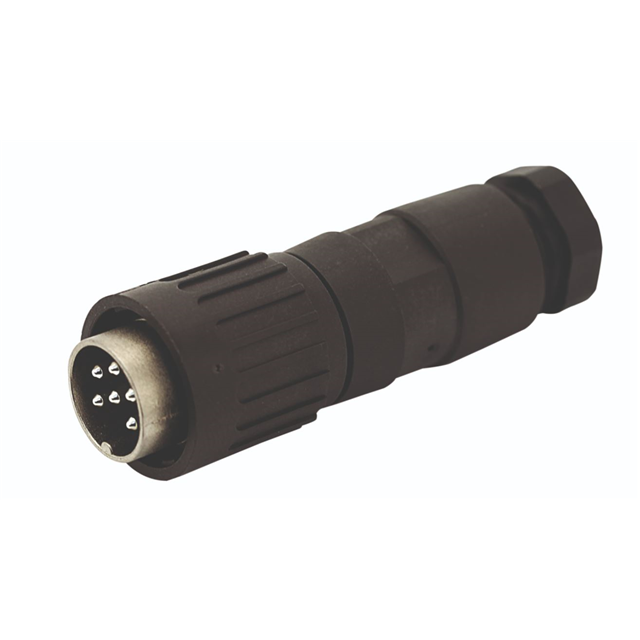

Amphenol Tuchel Industrial T 3274 552	1.5 mm	Die Cast	Backshell Cable Clamp Coupling Nut	Circular	Bayonet Lock	Black Silver	IP40	For Male Pins	Unshielded	Thermoplastic	Free Hanging (In-Line)	-40 C	100 °C	Keyed	M16-3	Plug Housing	UL94 V-0	Crimp	Contacts Not Included			Nickel
Amphenol Tuchel Industrial T 3274 991		Plastic	Strain Relief		Bayonet Lock		IP40				Free Hanging (In-Line)	-40 C	100 °C	Keyed	M16-3	Plug Male Pins				250 V			Plastic	10 A	Silver

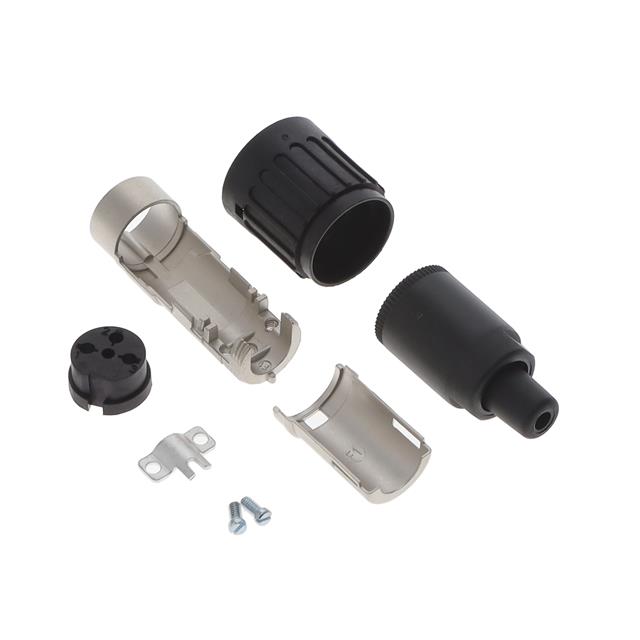

Amphenol Tuchel Industrial T 3274 551	1.5 mm	Die Cast	Cable Clamp Coupling Nut Strain Relief	Circular	Bayonet Lock	Black Silver	IP40	For Male Pins	Unshielded	Thermoplastic	Free Hanging (In-Line)	-40 C	100 °C	Keyed	M16-3	Plug Housing	UL94 V-0	Crimp	Contacts Not Included			Nickel
