1478408 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

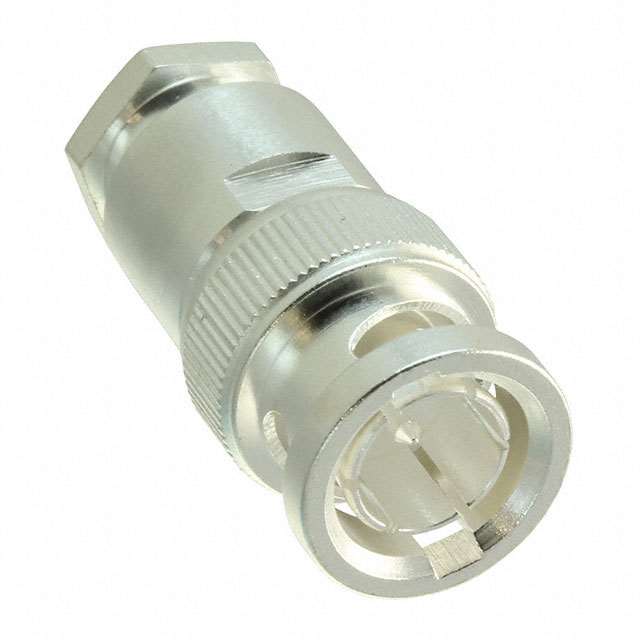

CONN BNC PLUG STR 75 OHM SOLDER
| Part | Center Contact Material | Mounting Type | Insertion Loss | Housing Color | Number of Ports | Cable Group | Mating Cycles | Body Material | Center Contact Plating | Body Finish | Impedance | Frequency - Max [Max] | Dielectric Material | Fastening Type | Contact Termination | Connector Type | Shield Termination | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Brass | Free Hanging (In-Line) | 0.3 dB | Silver | 1 | URM 70 | 500 | Brass | Silver | Silver | 75 Ohms | 1 GHz | Polytetrafluoroethylene (PTFE) | Bayonet Lock | Solder | Male Pin Plug | Clamp | 1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer 2 Insulators | -65 ░C | 165 °C | BNC | 500 V |
