B5M Series

Catalog

B SERIES, 5 CONTACTS, MALE, BLACK FINISH, SILVER CONTACT PLATING, SEALED XLR CONNECTOR

Part	Shell Finish	Mounting Type	Ingress Protection	Shell Material	Shell Size - Insert	Contact Material	Mounting Feature	Primary Material	Orientation	Fastening Type	Contact Finish - Mating	Applications	Color	Insert Material	Number of Positions	Connector Type	Features	Operating Temperature [Min]	Operating Temperature [Max]
SWITCHCRAFT/CONXALL B5MBH	Black	Panel Mount	IP66 - Dust Tight Water Resistant	Zinc	XLR	Brass	Bulkhead - Rear Side Nut	Metal	Keyed	Latch Lock	Silver	Audio Instrumentation	Black	Polyester	5	Receptacle Male Pins	Ground	-40 C	65 °C

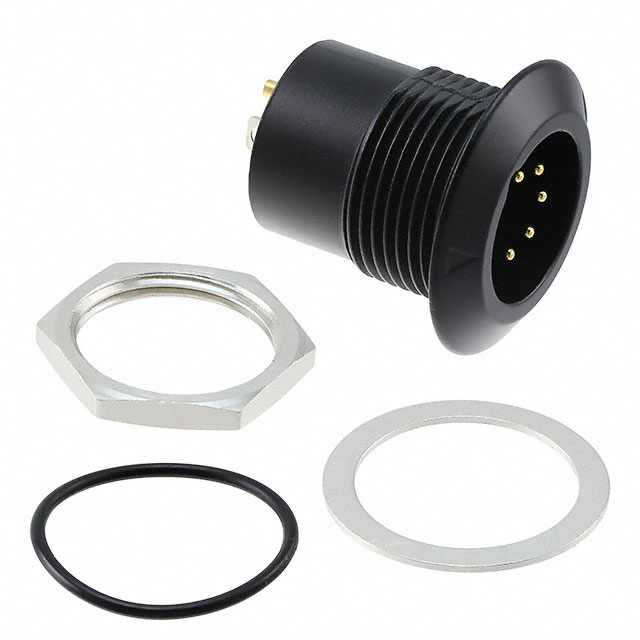

SWITCHCRAFT/CONXALL B5MBAUH	Black	Panel Mount	IP66 - Dust Tight Water Resistant	Zinc	XLR	Brass	Bulkhead - Rear Side Nut	Metal	Keyed	Latch Lock	Gold	Audio Instrumentation	Black	Polyester	5	Receptacle Male Pins	Ground	-40 C	65 °C
SWITCHCRAFT/CONXALL B5MH	Nickel	Panel Mount	IP66 - Dust Tight Water Resistant	Zinc	XLR	Brass	Bulkhead - Rear Side Nut	Metal	Keyed	Latch Lock	Silver	Audio Instrumentation	Silver	Polyester	5	Receptacle Male Pins	Ground	-40 C	65 °C
SWITCHCRAFT/CONXALL B5MAUH	Nickel	Panel Mount	IP66 - Dust Tight Water Resistant	Zinc	XLR	Brass	Bulkhead - Rear Side Nut	Metal	Keyed	Latch Lock	Gold	Audio Instrumentation	Silver	Polyester	5	Receptacle Male Pins	Ground	-40 C	65 °C
