19300100 Series

Manufacturer: HARTING

Catalog

10B HOOD TOP ENTRY, DOUBLE LEVER, HIGH CONSTRUCTION, M25

Part	Lock Location	Housing Color	Style	Operating Temperature [Max]	Operating Temperature [Min]	Size	Ingress Protection	Housing Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Thread Size	Housing Finish	Connector Type	Features

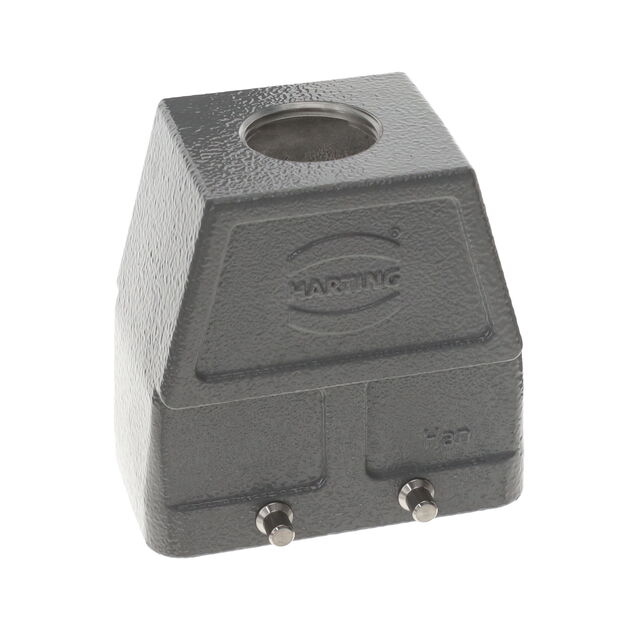

HARTING 19300100406	Locking Clip (2) on Base Bottom	Gray	Top Entry	125 °C	-40 C	10B	IP65 IP66 IP67	Aluminum Die Cast	72.6 mm	2.858 in	1.693 "	71.6 mm	43 mm	2.819 in	M25	Powder Coated	Hood

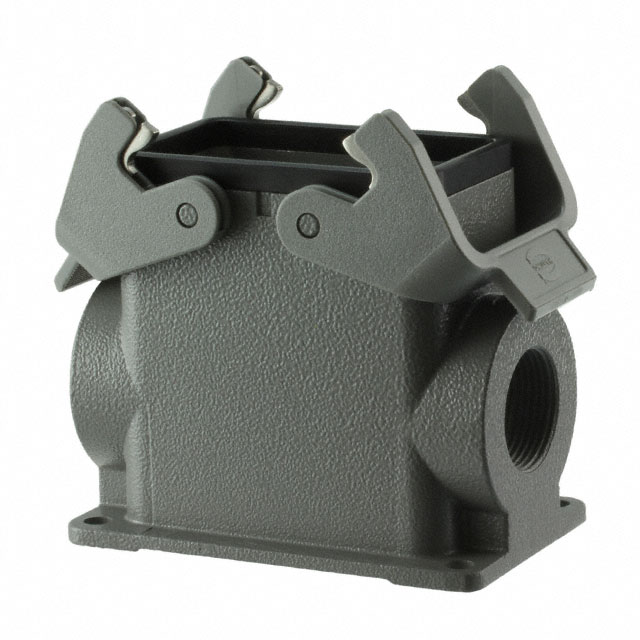

HARTING 19300100291	Locking Clip (1) on Base Bottom	Gray	Side Entry	125 °C	-40 C	10B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	3.701 " 94 mm			3.181 " 80.8 mm	2.244 in 57 mm		M25	Powder Coated	Base - Box Mount	Feed Through

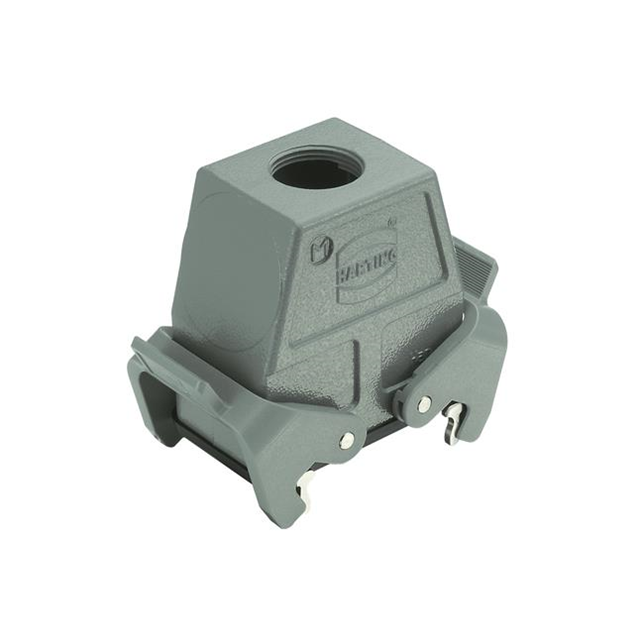

HARTING 19300100738	Locking Clip (2) on Hood	Gray	Top Entry Top or Bottom Entry	125 °C	-40 C	10B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast								Powder Coated	Hood - Coupling	Cable to Cable
HARTING 19300100747

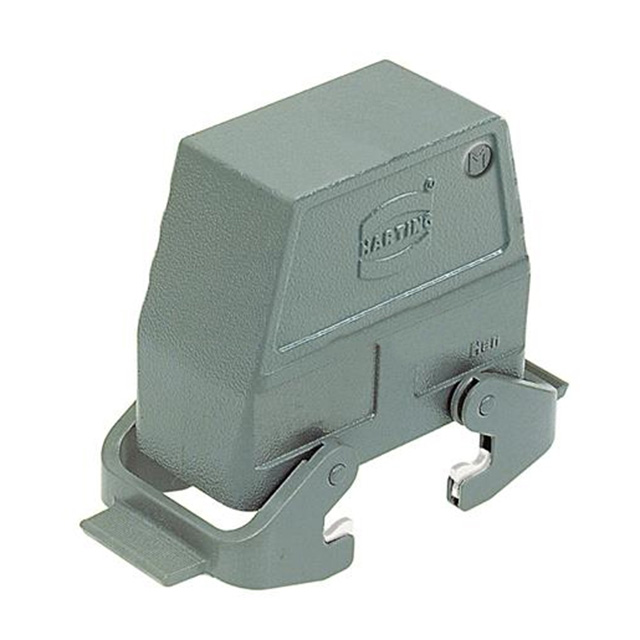

HARTING 19300100537	Locking Clip (2) on Hood	Gray	Side Entry	125 °C	-40 C	10B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	72.6 mm	2.858 in	1.693 "	72 mm	43 mm	2.835 "	M32	Powder Coated	Hood

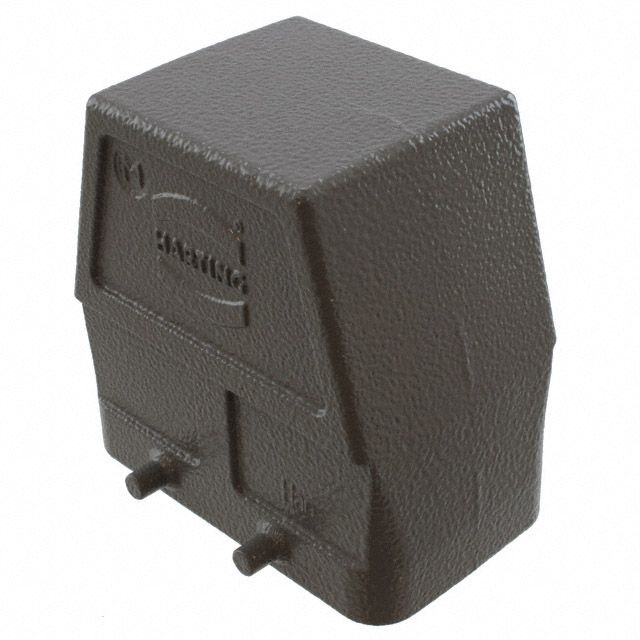

HARTING 19300100526	Locking Clip (2) on Base Bottom	Gray	Side Entry	125 °C	-40 C	10B	IP65 IP66 IP67	Aluminum Die Cast	72.6 mm	2.858 in	1.693 "	72 mm	43 mm	2.835 "	M25	Powder Coated	Hood

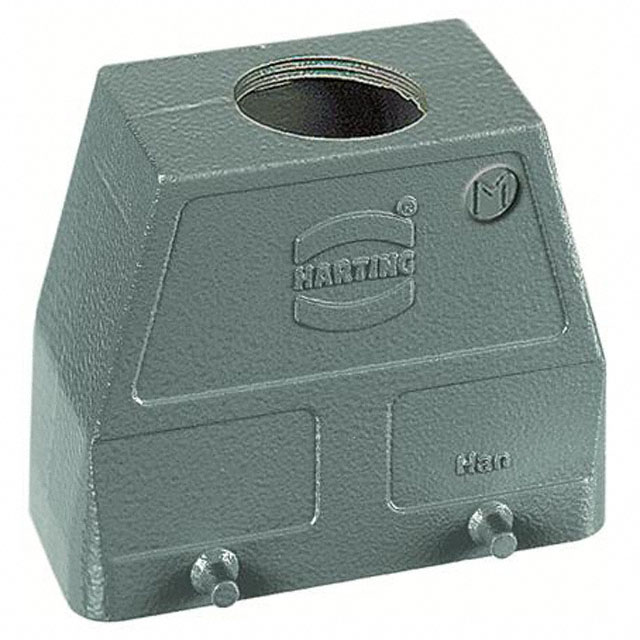

HARTING 19300100427	Locking Clip (2) on Base Bottom	Gray	Top Entry	125 °C	-40 C	10B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	72.6 mm	2.858 in	1.693 "	72 mm	43 mm	2.835 "	M32	Powder Coated	Hood

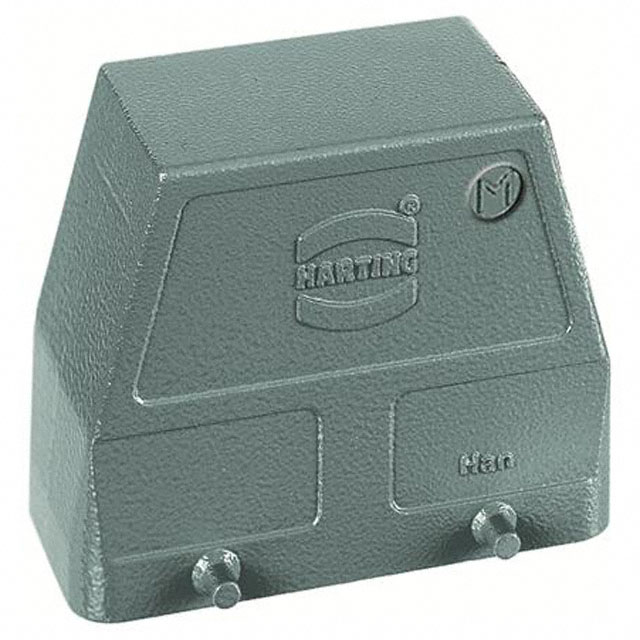

HARTING 19300100527	Locking Clip (2) on Base Bottom	Gray	Side Entry	125 °C	-40 C	10B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	72.6 mm	2.858 in	1.693 "	72 mm	43 mm	2.835 "	M32	Powder Coated	Hood
HARTING 19300100292	Locking Clip (1) on Base Bottom	Gray	Side Entry	125 °C	-40 C	10B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	3.701 " 94 mm			3.181 " 80.8 mm	2.244 in 57 mm		M32	Powder Coated	Base - Box Mount	Feed Through

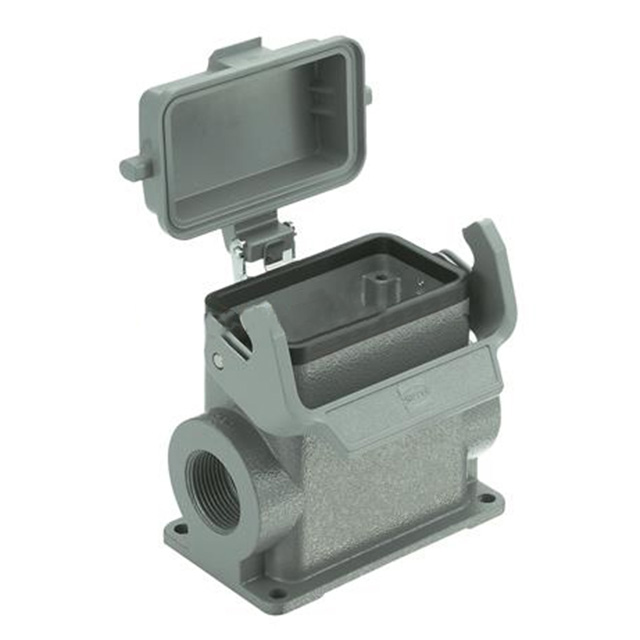

HARTING 19300100297	Locking Clip (1) on Base Bottom	Gray	Side Entry	125 °C	-40 C	10B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	3.701 " 94 mm			3.181 " 80.8 mm	2.244 in 57 mm		M32	Powder Coated	Base - Box Mount
