13280-18P Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

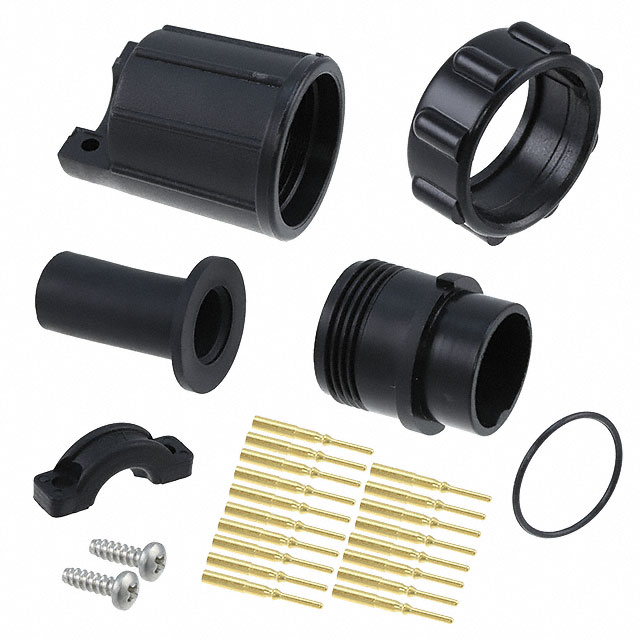

CIRCULAR CONNECTOR, MAXI-CON-X SERIES, CABLE MOUNT PLUG, 18 CONTACTS, CRIMP PIN, BAYONET
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Termination | Fastening Type | Shielding | Connector Type | Color | Features | Number of Positions | Primary Material | Voltage Rating | Contact Finish - Mating | Backshell Material, Plating | Contact Material | Ingress Protection | Orientation | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 115 °C | -40 C | Free Hanging (In-Line) | 0.3 " | 0.26 " | 6.6 mm | 7.62 mm | Crimp | Bayonet Lock | Unshielded | Plug Male Pins | Black | Backshell Cable Clamp | 18 | Plastic | 600 V | Gold | Nylon Polyamide (PA) | Brass | Weathertight | Keyed | |
 SWITCHCRAFT/CONXALL | 115 °C | -40 C | Free Hanging (In-Line) | 0.38 in | 0.31 " | 7.87 mm | 9.65 mm | Crimp | Bayonet Lock | Unshielded | Plug Male Pins | Black | Backshell Cable Clamp | 18 | Plastic | 600 V | Gold | Nylon Polyamide (PA) | Brass | Weathertight | Keyed | |
SWITCHCRAFT/CONXALL | 115 °C | -40 C | Free Hanging (In-Line) | 0.25 in | 0.21 in | 5.33 mm | Crimp | Bayonet Lock | Unshielded | Plug Male Pins | Black | Backshell Cable Clamp | 18 | Plastic | 600 V | Gold | Nylon Polyamide (PA) | Brass | Weathertight | Keyed | 6.35 mm |
