2027395 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

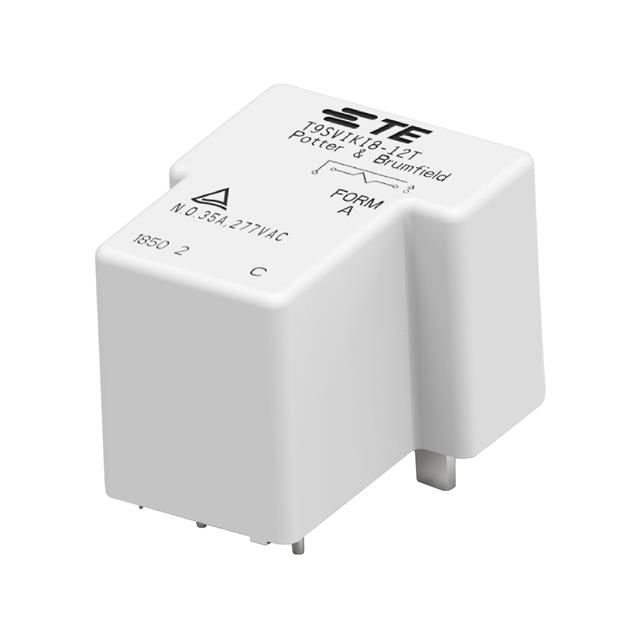

POWER RELAY 12VDC SPST-NO(32.51X27.43X20.4)MM THT
| Part | Coil Resistance | Coil Type | Coil Voltage | Load - Max Switching | Release Time | Seal Rating | Operate Time | Switching Voltage [Max] | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Termination Style | Must Operate Voltage | Mounting Type | Contact Form | Relay Type | Contact Rating (Current) | Must Release Voltage | Coil Insulation | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 64 Ohms | Non Latching | 12 VDC | 9695 VA | 15 ms | Sealed - Flux Protection | 18 ms | 277 VAC | UR VDE | 85 °C | -40 C | 188 mA | PC Pin | 9.6 VDC | Through Hole | SPST-NO (1 Form A) | General Purpose | 35 A | 0.8 VDC | Class F | Silver (Ag) |
