TZ800N18 Series

Manufacturer: INFINEON

Catalog

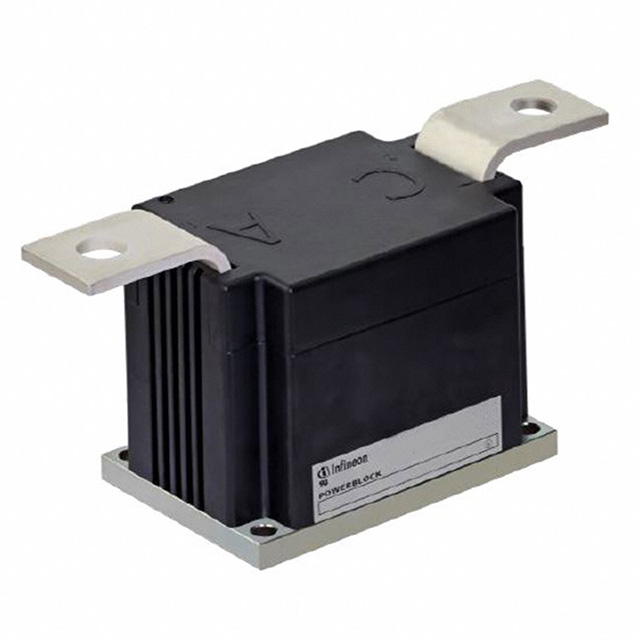

SCR MODULE 1800V 1500A MODULE

Part	Voltage - Gate Trigger (Vgt) (Max) [Max] [custom]	Current - On State (It (AV)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Structure	Number of SCRs, Diodes	Current - Hold (Ih) (Max) [Max]	Current - On State (It (RMS)) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max]	Package / Case	Mounting Type
INFINEON TZ800N18KOFTIMHPSA1	2 V	819 A	35000 A	Single	1 SCR	500 mA	1500 A	125 °C	-40 C	1.8 kV	250 mA	Module	Chassis Mount
INFINEON TZ800N18KOFB1HPSA2	2 V	819 A	35000 A	Single	1 SCR	500 mA	1500 A	125 °C	-40 C	1.8 kV	250 mA	Module	Chassis Mount
