RLA Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 250V 900UF 10% TOL.

Part	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Ripple Current @ High Frequency	Applications	Package / Case	Capacitance	Tolerance	Lifetime @ Temp.	Size / Dimension	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Lead Spacing	Lead Spacing	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]

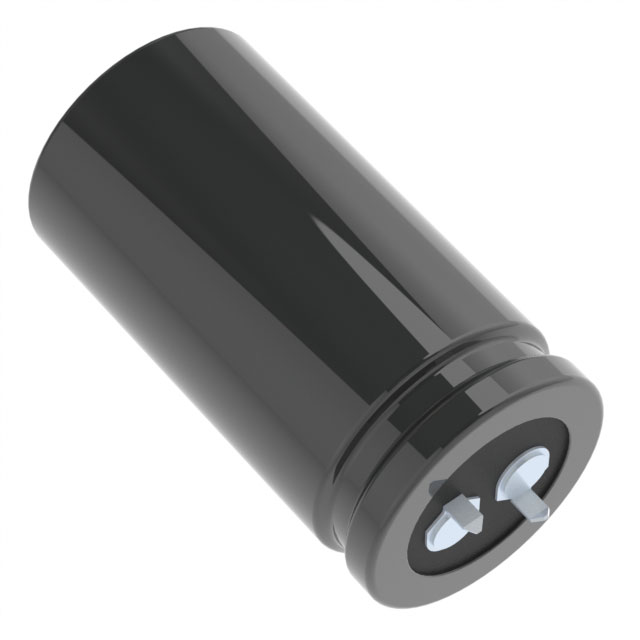

Chemi-Con ERLA251LIN901KR45M	5.01 A	47.5 mm	1.87 in	250 V	7.515 A	General Purpose	Radial Can - Snap-In	900 µF	20 %	3000 Hrs	30 mm	1.181 "	85 °C	-25 °C	Polar	0.559 in	14.2 mm	Through Hole
Chemi-Con ERLA181LIN112KR40M	5.17 A	42.5 mm	1.673 in	180 VDC	7.755 A	General Purpose	Radial Can - Snap-In	1100 µF	10 %	3000 Hrs	30 mm	1.181 "	85 °C	-25 °C	Polar	0.559 in	14.2 mm	Through Hole
Chemi-Con ERLA251LIN162KA55M	6.87 A			250 V	10.305 A	General Purpose	Radial Can - Snap-In	1600 µF	20 %	3000 Hrs		1.378 "	85 °C	-25 °C	Polar	0.559 in	14.2 mm	Through Hole	57.5 mm	2.264 "	35 mm
Chemi-Con ERLA181LIN172KR55M	6.63 A			180 VDC	9.945 A	General Purpose	Radial Can - Snap-In	1700 µF	10 %	3000 Hrs	30 mm	1.181 "	85 °C	-25 °C	Polar	0.559 in	14.2 mm	Through Hole	57.5 mm	2.264 "
