18980-5S Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

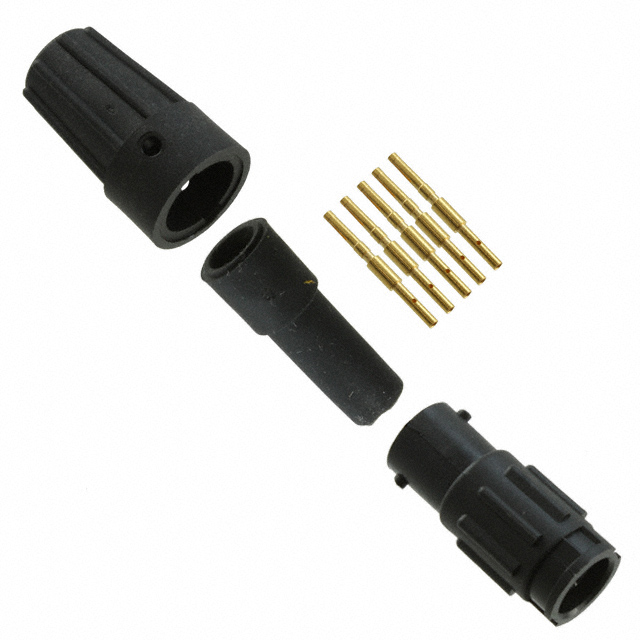

CIRCULAR CONNECTOR, MICRO-CON-X SERIES, CABLE MOUNT PLUG, 5 CONTACTS, CRIMP SOCKET, BAYONET
| Part | Current Rating (Amps) | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Connector Type | Voltage Rating | Material Flammability Rating | Number of Positions | Backshell Material, Plating | Termination | Primary Material | Shielding | Mounting Type | Orientation | Ingress Protection | Contact Finish - Mating | Features | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Color | Fastening Type | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 4 A | 5.59 mm | 5.84 mm | 0.23 in | 0.22 in | Receptacle Female Sockets | 600 VAC | UL94 HB | 5 | Thermoplastic | Crimp | Plastic | Unshielded | Free Hanging (In-Line) | B | IP67 - Dust Tight Waterproof | Gold | Backshell | 85 °C | -40 C | Copper Alloy | Black | Bayonet Lock | Data Industrial Instrumentation Medical |
