637H Series
Manufacturer: APEM Inc.
Beta
⌘K

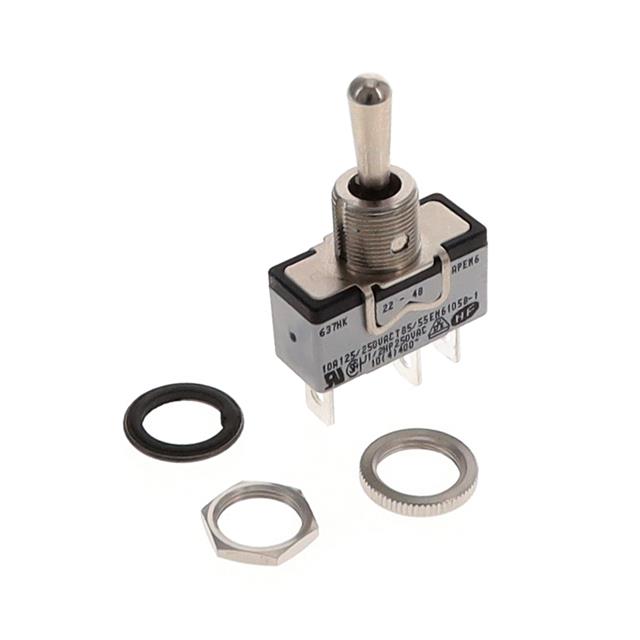

SWITCH TOGGLE SPDT 10A 250V
| Part | Electrical Life | Actuator Material | Actuator Type | Termination Style | Panel Cutout Dimensions [diameter] | Bushing Thread | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Actuator Length [x] | Current Rating (Amps) | Features | Mounting Type | Circuit | Voltage Rating - AC | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | 10000 Cycles | Brass Nickel Plated | Standard Round | Quick Connect - 0.250" (6.3mm) | 12.2 mm Dia | M12 x 0.75 | 55 °C | -20 ░C | Non-Illuminated | 17.5 mm | 10 A | Front Panel Sealing | Panel Mount | SPDT | 250 V | Mom-Off-Mom |
