F862 Series

Manufacturer: KEMET

Catalog

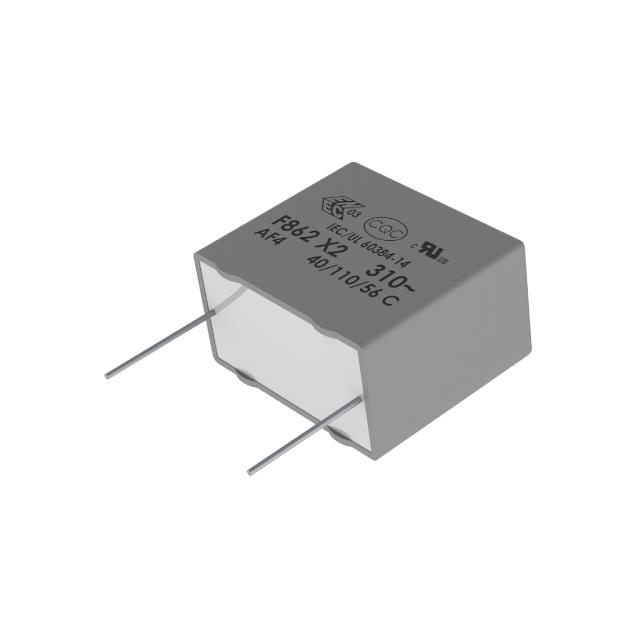

FILM CAPACITOR, AEC-Q200 F862 SERIES, 0.56 F, 10%, PP (POLYPROPYLENE), 310 VAC ROHS COMPLIANT: YES

Part	Lead Spacing	Lead Spacing	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Dielectric Material	Mounting Type	Voltage Rating - AC	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Capacitance	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]
KEMET F862BZ564K310ALR0L	15 mm	0.591 in	EMI RFI Suppression	0.709 in	0.472 "	12 mm	18 mm	10 %	Polypropylene (PP) Metallized	Through Hole	310 V	PC Pins	-40 C	110 °C	Radial	560 nF	AEC-Q200 X2	0.787 in	20 mm
KEMET F862BS334K310R	15 mm	0.591 in	Automotive EMI RFI Suppression	0.709 in	0.394 in	10 mm	18 mm	10 %	Polypropylene (PP) Metallized	Through Hole	310 V	PC Pins	-40 C	110 °C	Radial	0.33 µF	AEC-Q200 X2			16 mm	0.63 in
KEMET F862DJ394K310R	22.5 mm	0.886 in	Automotive EMI RFI Suppression			0.335 in	1.024 in	10 %	Polypropylene (PP) Metallized	Through Hole	310 V	PC Pins	-40 C	110 °C	Radial	0.39 µF	AEC-Q200 X2	17 mm			0.669 "	26 mm	8.5 mm
KEMET F862BZ564K310R	15 mm	0.591 in	Automotive EMI RFI Suppression	0.709 in	0.472 "	12 mm	18 mm	10 %	Polypropylene (PP) Metallized	Through Hole	310 V	PC Pins	-40 C	110 °C	Radial	560 nF	AEC-Q200 X2	0.787 in	20 mm
