D2534 Series

Catalog

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 34 CONTACTS, THROUGH HOLE STRAIGHT

Part	Contact Type	Termination	Material Flammability Rating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Features	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Insulation Color	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish - Mating	Style	Connector Type	Number of Positions [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows [custom]	Mounting Type	Shrouding	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post

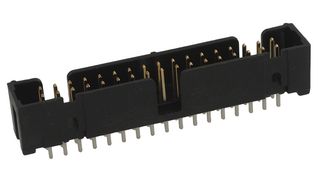

3M Electronic Specialty D2534-6002-AR	Male Pin	Solder	UL94 V-0	1.75 A	0.1 "	2.54 mm	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.112 in	2.84 mm	Brass Copper Alloy	0.492 in	12.5 mm	All	Keying Slot	0.39 in	9.91 mm	Tin	Black	Push-Pull	-55 C	105 ░C	Square	Gold	Board to Board Board to Cable/Wire Cable	Header	34	0.25 µm	10 µin	2	Through Hole	Shrouded - 4 Wall	0.253 "	6.43 mm	39.4 çin	1 çm
3M Electronic Specialty D2534-5002-AR	Male Pin	Solder	UL94 V-0	1.75 A	0.1 "	2.54 mm	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.112 in	2.84 mm	Brass Copper Alloy			All	Keying Slot			Tin	Black	Push-Pull	-55 C	105 ░C	Square	Gold	Board to Cable/Wire	Header	34	0.25 µm	10 µin	2	Right Angle Through Hole	Shrouded - 4 Wall	0.338 in	8.59 mm	39.4 çin	1 çm
3M Electronic Specialty D2534-6V0C-AR-WF	Male Pin	Solder	UL94 V-0	1.75 A	0.1 "	2.54 mm	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			Brass			All	Keying Slot Pick and Place	0.39 in	9.91 mm	Tin	Black	Push-Pull	-55 C	105 ░C	Square	Gold	Board to Cable/Wire	Header	34	0.25 µm	10 µin	2	Surface Mount	Shrouded - 4 Wall			39.4 çin	1 çm
