EN2C5M Series

Catalog

CIRCULAR CONNECTOR, EN2 SERIES, 5 CONTACTS, THERMOPLASTIC BODY

Part	Color	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Insert Material	Shielding	Primary Material	Features	Ingress Protection	Voltage Rating	Applications	Number of Positions	Material Flammability Rating	Fastening Type	Contact Finish - Mating	Mounting Type	Contact Material	Orientation	Connector Type	Backshell Material, Plating
SWITCHCRAFT/CONXALL EN2C5M26G2	Black	85 °C	-40 C	Crimp Solder Cup	0.18 "	4.57 mm	3.56 mm	0.14 in	Elastomer	Unshielded	Plastic	Backshell Coupling Nut	IP66 IP67 IP68	125 VAC	Communication Systems Industrial Marine Medical	5	UL94 V-0	Bayonet Lock	Gold	Free Hanging (In-Line)	Copper Alloy	Keyed	Plug Male Pins	Thermoplastic
SWITCHCRAFT/CONXALL EN2C5M26G3W	Black	85 °C	-40 C	Crimp Solder Cup	0.22 in	5.59 mm	4.57 mm	0.18 "	Elastomer	Unshielded	Plastic	Backshell Coupling Nut Winged	IP66 IP67 IP68	125 VAC	Communication Systems Industrial Marine Medical	5	UL94 V-0	Bayonet Lock	Gold	Free Hanging (In-Line)	Copper Alloy	Keyed	Plug Male Pins	Thermoplastic
SWITCHCRAFT/CONXALL EN2C5M26DCW	Black	85 °C	-40 C	Crimp Solder Cup					Elastomer	Unshielded	Plastic	Backshell Coupling Nut Winged	IP66 IP67 IP68	125 VAC	Communication Systems Industrial Marine Medical	5	UL94 V-0	Bayonet Lock	Gold	Free Hanging (In-Line)	Copper Alloy	Keyed	Plug Male Pins	Thermoplastic
SWITCHCRAFT/CONXALL EN2C5M26G2W	Black	85 °C	-40 C	Crimp Solder Cup	0.18 "	4.57 mm	3.56 mm	0.14 in	Elastomer	Unshielded	Plastic	Backshell Coupling Nut Winged	IP66 IP67 IP68	125 VAC	Communication Systems Industrial Marine Medical	5	UL94 V-0	Bayonet Lock	Gold	Free Hanging (In-Line)	Copper Alloy	Keyed	Plug Male Pins	Thermoplastic

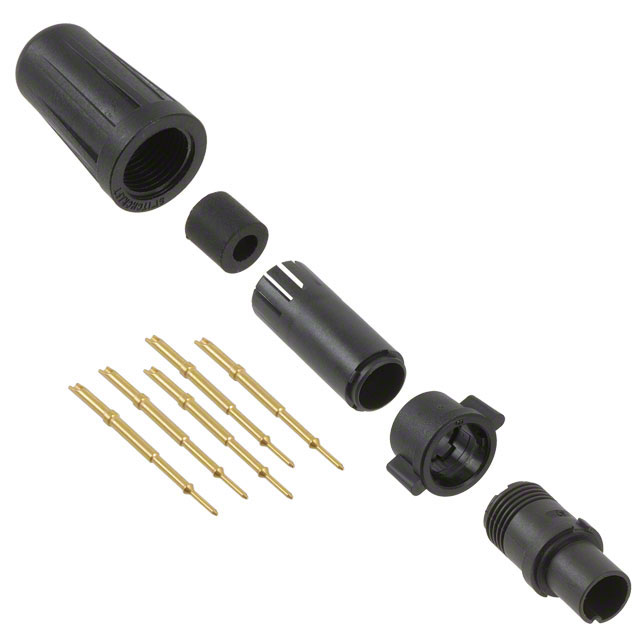

SWITCHCRAFT/CONXALL EN2C5M26G1W	Black	85 °C	-40 C	Crimp Solder Cup	0.14 in	3.56 mm	2.54 mm	0.1 "	Elastomer	Unshielded	Plastic	Backshell Coupling Nut Winged	IP66 IP67 IP68	125 VAC	Communication Systems Industrial Marine Medical	5	UL94 V-0	Bayonet Lock	Gold	Free Hanging (In-Line)	Copper Alloy	Keyed	Plug Male Pins	Thermoplastic

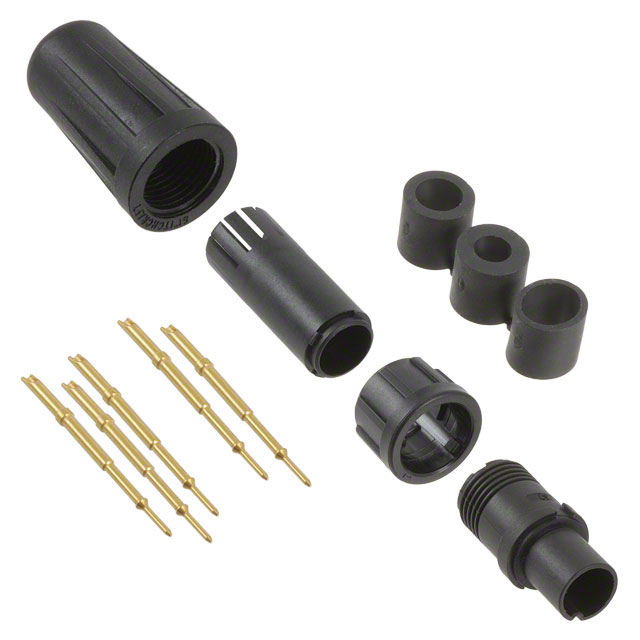

SWITCHCRAFT/CONXALL EN2C5M26DC	Black	85 °C	-40 C	Crimp Solder Cup					Elastomer	Unshielded	Plastic	Backshell Coupling Nut	IP66 IP67 IP68	125 VAC	Communication Systems Industrial Marine Medical	5	UL94 V-0	Bayonet Lock	Gold	Free Hanging (In-Line)	Copper Alloy	Keyed	Plug Male Pins	Thermoplastic
SWITCHCRAFT/CONXALL EN2C5M26G3	Black	85 °C	-40 C	Crimp Solder Cup	0.22 in	5.59 mm	4.57 mm	0.18 "	Elastomer	Unshielded	Plastic	Backshell Coupling Nut	IP66 IP67 IP68	125 VAC	Communication Systems Industrial Marine Medical	5	UL94 V-0	Bayonet Lock	Gold	Free Hanging (In-Line)	Copper Alloy	Keyed	Plug Male Pins	Thermoplastic
