SHP350 Series
Manufacturer: XP Power
Beta
⌘K

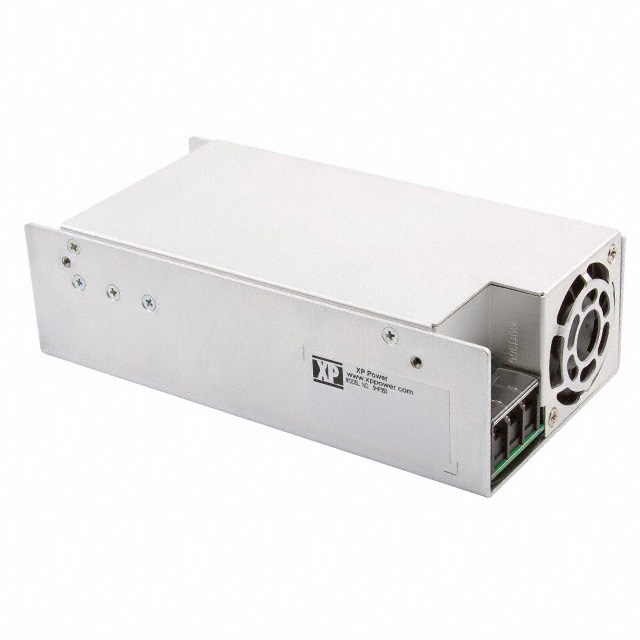

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 318 W, 12 V, 26.5 A
| Part | Minimum Load Required | Mounting Type | Standard Number | Features | Voltage - Isolation | Current - Output 1 | Power (Watts) | Type | Approval Agency | Applications | Efficiency | Number of Outputs | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | Chassis Mount | 62368-1 | Adjustable Output Load Sharing Remote On/Off Standby Output Universal Input | 3000 V | 26.5 A | 350 W | Enclosed | CB | ITE (Commercial) | 85 % | 1 | 12 V | 177.8 mm | 91.4 mm | 7 " | 3.6 " | 2.1 in | 53.3 mm | |
XP Power | Chassis Mount | 62368-1 | Adjustable Output Load Sharing Remote On/Off Standby Output Universal Input | 3000 V | 7.3 A | 350 W | Enclosed | CB | ITE (Commercial) | 85 % | 1 | 48 V | 177.8 mm | 91.4 mm | 7 " | 3.6 " | 2.1 in | 53.3 mm | |
XP Power | Chassis Mount | 62368-1 | Adjustable Output Load Sharing Remote On/Off Standby Output Universal Input | 3000 V | 12.5 A | 350 W | Enclosed | CB | ITE (Commercial) | 85 % | 1 | 28 V | 177.8 mm | 91.4 mm | 7 " | 3.6 " | 2.1 in | 53.3 mm |
