IPDD60 Series

Manufacturer: INFINEON

Catalog

COOLMOS™ CFD7 N-CHANNEL SUPERJUNCTION MOSFET 600 V ; DDPAK PACKAGE; 75 MOHM;

Part	FET Type	Rds On (Max) @ Id, Vgs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	Technology	Drain to Source Voltage (Vdss)	Package / Case	Power Dissipation (Max)	Vgs(th) (Max) @ Id	Vgs (Max)	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds [Max]	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Power Dissipation (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]
INFINEON IPDD60R075CFD7XTMA1	N-Channel	75 mOhm	150 °C	-55 °C	Surface Mount	2102 pF	PG-HDSOP-10-1	MOSFET (Metal Oxide)	600 V	10-PowerSOP Module	266 W	4.5 V	20 V	51 nC
INFINEON IPDD60R170CFD7XTMA1	N-Channel	170 mOhm	150 °C	-55 °C	Surface Mount		PG-HDSOP-10-1	MOSFET (Metal Oxide)	600 V	10-PowerSOP Module	137 W	4.5 V	20 V	23 nC	1016 pF	19 A
INFINEON IPDD60R145CFD7XTMA1	N-Channel	145 mOhm	150 °C	-55 °C	Surface Mount	1199 pF	PG-HDSOP-10-1	MOSFET (Metal Oxide)	600 V	10-PowerSOP Module		4.5 V	20 V	28 nC		24 A
INFINEON IPDD60R055CFD7XTMA1	N-Channel	55 mOhm	150 °C	-55 °C	Surface Mount		PG-HDSOP-10-1	MOSFET (Metal Oxide)	600 V	10-PowerSOP Module	329 W	4.5 V	20 V		2724 pF	52 A

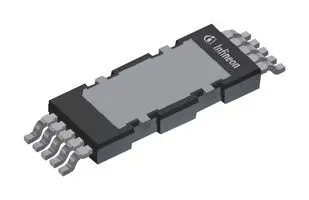

INFINEON IPDD60R150G7XTMA1	N-Channel	150 mOhm	150 °C	-55 °C	Surface Mount	902 pF	PG-HDSOP-10-1	MOSFET (Metal Oxide)	600 V	10-PowerSOP Module	95 W	4 V	20 V	23 nC		16 A	10 V
INFINEON IPDD60R050G7XTMA1	N-Channel	50 mOhm	150 °C	-55 °C	Surface Mount		PG-HDSOP-10-1	MOSFET (Metal Oxide)	600 V	10-PowerSOP Module		4 V	20 V	68 nC	2670 pF	47 A	10 V	278 W
INFINEON IPDD60R045CFD7XTMA1	N-Channel	45 mOhm	150 °C	-55 °C	Surface Mount		PG-HDSOP-10-1	MOSFET (Metal Oxide)	600 V	10-PowerSOP Module	379 W	4.5 V	20 V	79 nC		61 A
INFINEON IPDD60R102G7XTMA1	N-Channel	102 mOhm	150 °C	-55 °C	Surface Mount	1320 pF	PG-HDSOP-10-1	MOSFET (Metal Oxide)	600 V	10-PowerSOP Module	139 W	4 V	20 V			23 A	10 V		34 nC
INFINEON IPDD60R125G7XTMA1	N-Channel	125 mOhm	150 °C	-55 °C	Surface Mount	1080 pF	PG-HDSOP-10-1	MOSFET (Metal Oxide)	600 V	10-PowerSOP Module	120 W	4 V	20 V	27 nC		20 A	10 V
INFINEON IPDD60R090CFD7XTMA1	N-Channel	90 mOhm	150 °C	-55 °C	Surface Mount	1747 pF	PG-HDSOP-10-1	MOSFET (Metal Oxide)	600 V	10-PowerSOP Module	227 W	4.5 V	20 V			33 A			42 nC
