N3440 Series

Catalog

80000910192 N3440-6303RB =30/HDR/LL/STR/HT/.155/30AVG/ROHS

Part	Insulation Color	Insulation Height [z]	Insulation Height [z]	Mounting Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish - Mating	Number of Positions	Current Rating (Amps)	Contact Length - Mating [x]	Contact Length - Mating [x]	Material Flammability Rating	Contact Material	Shrouding	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Type	Fastening Type	Number of Rows [custom]	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Style	Connector Type	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height
3M Electronic Specialty N3440-6303RB	Black	17.27 mm	0.68 in	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	105 ░C	Square	Gold	30	1.75 A	0.24 in	6.1 mm	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	Solder	0.76 Ám	30 Áin	0.695 in	17.65 mm	0.1 in	2.54 mm	0.1 "	2.54 mm	Male Pin	Latch Lock/Eject Hooks Long	2	Tin	3.94 mm	0.155 "	Board to Cable/Wire	Header	All	200 µin	5.08 µm
3M Electronic Specialty N3440-5202RB	Black	8.64 mm	0.34 in	Right Angle Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	105 ░C	Square	Gold	30	1.75 A	0.24 in	6.1 mm	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	Solder	0.76 Ám	30 Áin			0.1 in	2.54 mm	0.1 "	2.54 mm	Male Pin	Latch Lock/Eject Hooks	2	Tin			Board to Cable/Wire	Header	All	200 µin	5.08 µm	0.112 in	2.84 mm
3M Electronic Specialty N3440-5002RB	Black	8.64 mm	0.34 in	Right Angle Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	105 ░C	Square	Gold	30	1.75 A	0.24 in	6.1 mm	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	Solder	0.76 Ám	30 Áin			0.1 in	2.54 mm	0.1 "	2.54 mm	Male Pin	Push-Pull	2	Tin			Board to Cable/Wire	Header	All	200 µin	5.08 µm	0.112 in	2.84 mm
3M Electronic Specialty N3440-6002RB	Black	17.27 mm	0.68 in	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	105 ░C	Square	Gold	30	1.75 A	0.24 in	6.1 mm	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	Solder	0.76 Ám	30 Áin	0.652 in	16.56 mm	0.1 in	2.54 mm	0.1 "	2.54 mm	Male Pin	Push-Pull	2	Tin			Board to Cable/Wire	Header	All	200 µin	5.08 µm	0.112 in	2.84 mm
3M Electronic Specialty N3440-L002RB	Black			Right Angle Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	105 ░C	Square	Gold			0.24 in	6.1 mm	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	Solder	0.76 Ám	30 Áin			0.1 in	2.54 mm	0.1 "	2.54 mm	Male Pin	Push-Pull	2	Tin			Board to Cable/Wire	Header Stackable (2)	All	200 µin	5.08 µm	0.112 in	2.84 mm	16.76 mm	0.66 in

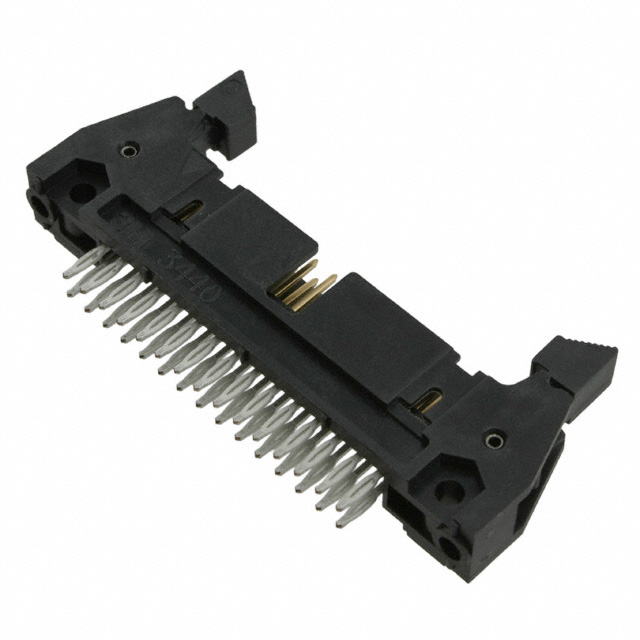

3M Electronic Specialty N3440-620T02RB	Black	17.27 mm	0.68 in	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	105 ░C	Square	Gold	30	1.75 A	0.24 in	6.1 mm	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	Press-Fit Solder	0.76 Ám	30 Áin	0.715 in	18.16 mm	0.1 in	2.54 mm	0.1 "	2.54 mm	Male Pin	Latch Lock/Eject Hooks	2	Tin	4.45 mm	0.175 in	Board to Cable/Wire	Header	All	300 µin	7.62 µm
