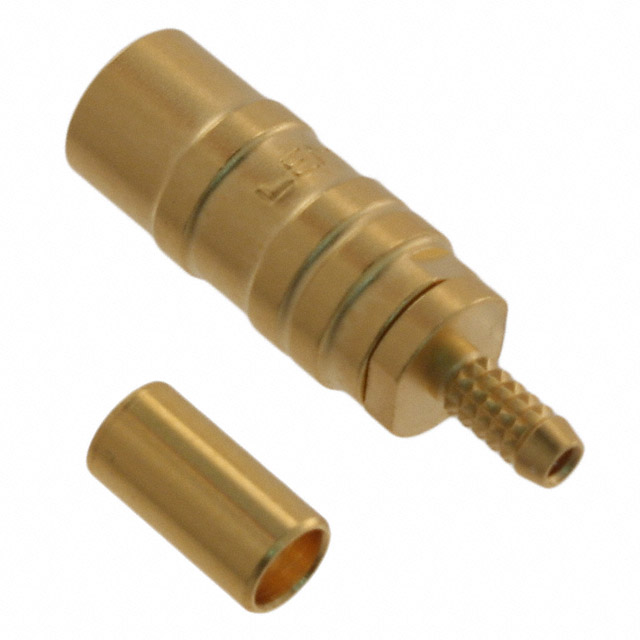

PCS.01 Series
Manufacturer: LEMO
Catalog
CONN MINI COAX RCPT STR 50 OHM
| Part | Voltage Rating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Finish | Mating Cycles | Center Contact Plating | Housing Color | Impedance | Number of Ports | Mounting Type | Center Contact Material | Shield Termination | Fastening Type | Cable Group | Ingress Protection | Connector Type | Connector Style | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
300 VDC | Brass | -55 C | 230 °C | Polyetheretherketone (PEEK) | Gold | 1000 | Gold | Gold | 50 Ohms | 1 | Free Hanging (In-Line) | Bronze | Crimp | Push-Pull | 179B 187A 188A 316 RG-174 | IP50 - Dust Protected | Receptacle Female Socket | Miniature Coaxial | Solder | |
300 VDC | Brass | -55 C | 230 °C | Polyetheretherketone (PEEK) | Gold | 1000 | Gold | Gold | 50 Ohms | 1 | Free Hanging (In-Line) | Bronze | Crimp | Push-Pull | 196A RG-178B | IP50 - Dust Protected | Receptacle Female Socket | Miniature Coaxial | Solder |
